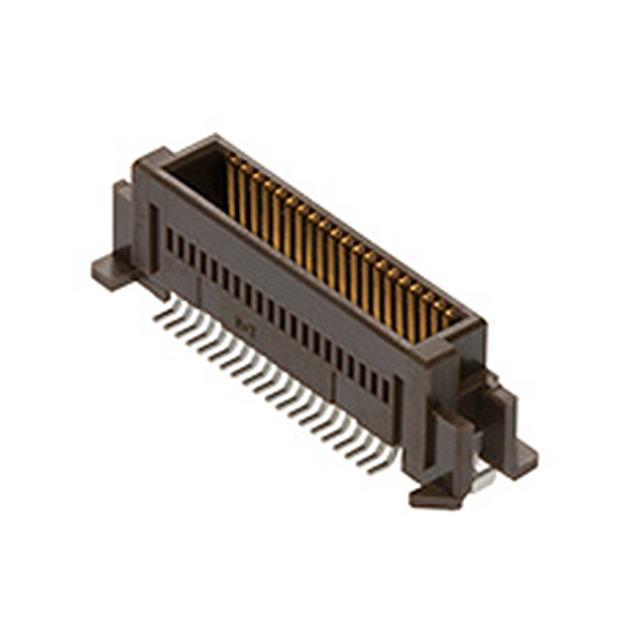

53625-1674

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mounting Style :

Surface Mount

Current Rating (Max) :

0.5/Contact(A)

Housing Material :

Thermoplastic

Type :

Board to Board

Housing Color :

Natural

Current Rating :

500 mA

Tradename :

SlimStack

Number of Rows :

2 Row

Body Orientation :

Straight

Brand :

Molex

Contact Material :

Phosphor Bronze

Number of Contacts :

160(POS)

Packaging :

Tape and Reel

Number of Contact Rows :

2

Termination Method :

Solder

Product Category :

Board to Board and Mezzanine Connectors

Contact Plating :

Gold Over Nickel

Pitch (mm) :

0.64(mm)

Product Depth (mm) :

5(mm)

Pitch :

0.64 mm

Product Height (mm) :

6(mm)

Stack Height :

7 mm, 13 mm

Termination Style :

Solder

Number of Positions :

160 Position

Minimum Operating Temperature :

- 55 C

RoHS :

Details

Application :

Board-to-Board

Operating Temp Range :

-55C to 105C

Product Status :

Active

Package :

Box

Voltage Rating Max :

100V

Gender :

HDR

Subcategory :

Board to Board and Mezzanine Connectors

Product Type :

Board to Board and Mezzanine Connectors

Orientation :

Vertical

Voltage Rating :

100 V

Product :

Headers

Mounting Angle :

Vertical

Product Length (mm) :

57.67(mm)

Series :

53625

Manufacturer :

Molex

Maximum Operating Temperature :

+ 105 C
