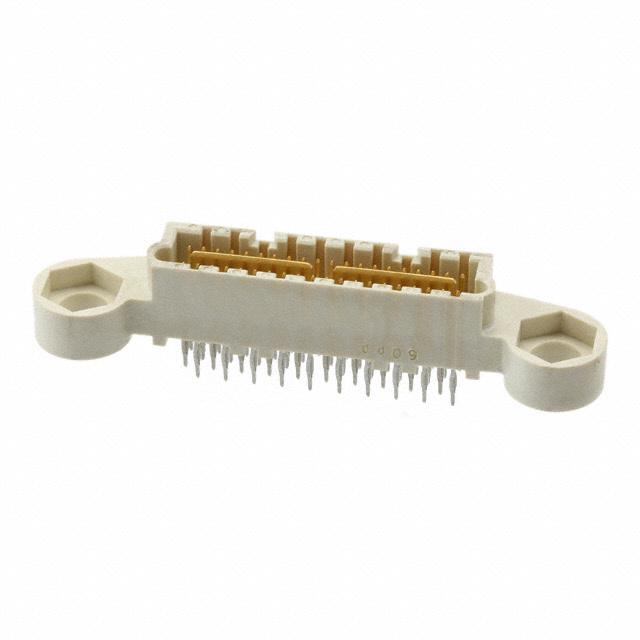

536275-7
Or copy the link below:
- Mfr.Part #
- 536275-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 40POS 1.27MM
- Stock
- 47,220
- In Stock ：
- 47,220
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length - Tail :
- 3.683mm
- Contact Plating :
- Gold
- Packaging :
- Box
- Mount :
- Through Hole
- Termination :
- Press-Fit
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 5
- Body Breadth :
- 0.417 inch
- ECCN Code :
- EAR99
- Plating Thickness :
- 30μin
- Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Polarization Key :
- POLARIZED HOUSING
- Insulation Resistance :
- 5000000000Ohm
- DIN Conformance :
- No
- Pitch :
- 1.27mm
- IEC Conformance :
- No
- Additional Feature :
- ACTION PIN
- Reliability :
- COMMERCIAL
- Durability :
- 50 Cycles
- PCB Contact Pattern :
- STAGGERED
- Length - Termination :
- 0.145 inch
- Number of Contacts :
- 40
- Dielectric Withstanding Voltage :
- 500VAC V
- Stack Height :
- 10.92mm
- Orientation :
- Straight
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- NOT SPECIFIED
- Contact Material :
- Bronze
- Connector Type :
- Pin, Plug
- Min Operating Temperature :
- -65°C
- Contact Gender :
- Male
- Number of Rows :
- 2
- Housing Material :
- Thermoplastic
- Body Depth :
- 0.34 inch
- Max Operating Temperature :
- 125°C
- MIL Conformance :
- No
- ELV :
- Non-Compliant
- Insertion Force-Max :
- .834 N
- Mixed Contacts :
- No
- Height :
- 8.636mm
- Preloaded :
- yes
- Housing Color :
- Natural
- PCB Mounting Orientation :
- Vertical
- Row Spacing - Mating :
- 2.54 mm
- Option :
- GENERAL PURPOSE
- Contact Style :
- SQ PIN-SKT
- Datasheets
- 536275-7
2-Row Pin, Plug Press-Fit Bronze Box NOT SPECIFIED
536275-7 Overview
Packaging is Pin, Plug.Packaging for the product is carried out via a Box case.There are also other features such as ACTION PIN, to name only a few.Temperatures below 125°C are best for using it.There's a minimum temperature of -65°C for this device.In this case, Through Hole mounts the part.
