536274-5
Or copy the link below:
- Mfr.Part #
- 536274-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 120POS 1.27MM
- Stock
- 44,192
- In Stock ：
- 44,192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length - Tail :
- 3.683mm
- JESD-609 Code :
- e0
- Min Operating Temperature :
- -65°C
- HTS Code :
- 8536.69.40.40
- RoHS Status :
- RoHS Compliant
- ELV :
- Non-Compliant
- Stack Height :
- 10.92mm
- Orientation :
- Straight
- Connector Type :
- Pin, Plug
- Contact Plating :
- Gold
- Plating Thickness :
- 30μin
- Durability :
- 50 Cycles
- DIN Conformance :
- No
- MIL Conformance :
- No
- Number of Rows :
- 2
- Number of Conductors :
- ONE
- Height :
- 8.636mm
- Pitch :
- 1.27mm
- ECCN Code :
- EAR99
- Housing Material :
- Thermoplastic
- Housing Color :
- Natural
- PCB Contact Pattern :
- STAGGERED
- Contact Pattern :
- RECTANGULAR
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Gender :
- Male
- Contact Material :
- Bronze
- PCB Mounting Orientation :
- Vertical
- IEC Conformance :
- No
- Mount :
- Through Hole
- Number Of PCB Rows :
- 5
- Contact Style :
- SQ PIN-SKT
- Max Operating Temperature :
- 125°C
- Number of Positions :
- 120
- Body Depth :
- 0.34 inch
- Insulation Resistance :
- 5000000000Ohm
- Mixed Contacts :
- No
- Preloaded :
- yes
- Lead Free :
- Lead Free
- Length - Termination :
- 0.145 inch
- Filter Feature :
- No
- Termination :
- Press-Fit
- Total Number of Contacts :
- 120
- Option :
- GENERAL PURPOSE
- Row Spacing - Mating :
- 2.54 mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Reliability :
- COMMERCIAL
- Polarization Key :
- POLARIZED HOUSING
- Additional Feature :
- HIGH DENSITY, POLARZED
- Datasheets
- 536274-5

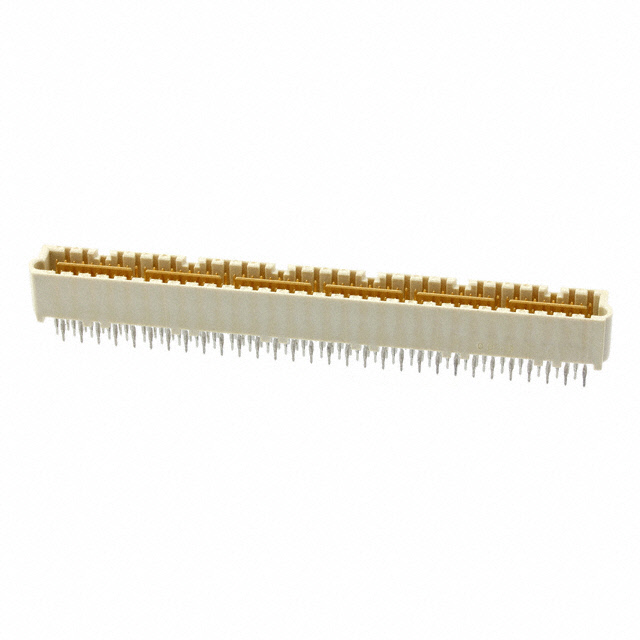

2-Row Pin, Plug Press-Fit Bronze 120-Position
536274-5 Overview
The packaging contains Pin, Plug.Further, there are features such as HIGH DENSITY, POLARZED, to name only a few.Whenever the temperature is below 125°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Through Hole mount on the part.
536274-5 Features
536274-5 Applications
There are a lot of TE Connectivity / AMP
536274-5 Rectangular Connectors applications.
