535598-7
Or copy the link below:
- Mfr.Part #
- 535598-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 12POS 0.1 GOLD PCB
- Stock
- 45,761
- In Stock ：
- 45,761
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Published :
- 2009
- Number of Positions :
- 12
- RoHS Status :
- Non-RoHS Compliant
- Contact Resistance :
- 12mOhm
- Operating Temperature :
- -65°C~125°C
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- Number of Conductors :
- ONE
- Mating Contact Pitch :
- 0.1 inch
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Mounting Type :
- Through Hole
- Number Of PCB Rows :
- 2
- Height :
- 5.03mm
- Mount :
- Through Hole
- High Temperature Compatible :
- No
- Contact Finish - Mating :
- Gold
- PCB Thickness :
- 1.57mm
- Number of Rows :
- 2
- Contact Finish - Post :
- Tin-Lead
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.265 6.73mm
- Stackable :
- yes
- Body Length or Diameter :
- 0.6 inch
- Contact Length - Post :
- 0.125 3.18mm
- PCB Contact Pattern :
- RECTANGULAR
- Rated Current (Signal) :
- 3A
- Housing Material :
- Polyester
- Housing Color :
- Black
- Length - Tail :
- 3.18mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Material :
- Phosphor Bronze
- Dielectric Withstanding Voltage :
- 750VAC V
- Insulation Material :
- Polyester, Glass Filled
- Packaging :
- Tube
- Plating Thickness :
- 3.81μm
- Contact Shape :
- Square
- Insulation Resistance :
- 5GOhm
- Pitch - Mating :
- 0.100 2.54mm
- Series :
- AMPMODU Mod IV
- Withdrawl Force-Min :
- .417 N
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Current Rating :
- 2A
- Contact Type :
- Female Socket
- Lead Length :
- 3.175mm
- Additional Feature :
- PCB STANDOFF
- Style :
- Board to Board or Cable
- Connector Type :
- Receptacle
- ELV :
- Non-Compliant
- Lead Free :
- Contains Lead
- Orientation :
- Vertical
- Reliability :
- COMMERCIAL
- Durability :
- 100 Cycles
- Datasheets
- 535598-7

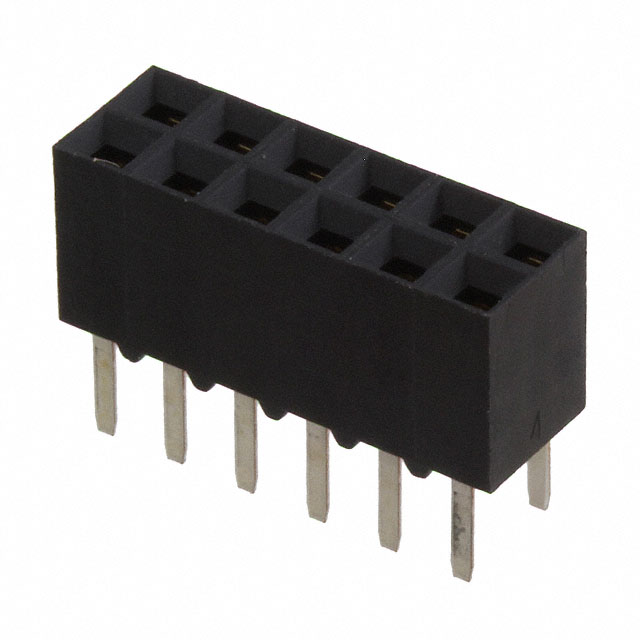

2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 12 Positions Female Socket
535598-7 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod IV Series.Other features include PCB STANDOFF, to name just a few.There is a mounting hole at Through Hole.Devices operate at -65°C~125°C operating temperatures.
535598-7 Features
AMPMODU Mod IV series
535598-7 Applications
There are a lot of TE Connectivity AMP Connectors
535598-7 Rectangular Connectors applications.
