535512-5
Or copy the link below:
- Mfr.Part #
- 535512-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 36POS 0.1 GOLD PCB R/A
- Stock
- 7,311
- In Stock ：
- 7,311
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Shape :
- Square
- Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- Contact Current Rating :
- 2A
- Contact Type :
- Female Socket
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Length - Tail :
- 2.92mm
- PCB Mount Retention :
- Without
- Contact Finish Thickness - Post :
- 50.0μin 1.27μm
- UL Flammability Code :
- 94V-0
- Operating Temperature :
- -55°C~125°C
- PCB Contact Pattern :
- RECTANGULAR
- Connector Type :
- Receptacle
- Dielectric Withstanding Voltage :
- 1050VAC V
- Length :
- 45.72mm
- Material Flammability Rating :
- UL94 V-0
- Rated Current (Signal) :
- 2A
- Plating Thickness :
- 30μin
- Series :
- AMPMODU Mod II
- ECCN Code :
- EAR99
- Number of Conductors :
- ONE
- Pbfree Code :
- No
- Contact Length - Post :
- 0.115 2.92mm
- Pitch - Mating :
- 0.100 2.54mm
- PCB Contact Row Spacing :
- 7.874 mm
- Termination :
- Solder
- RoHS Status :
- Non-RoHS Compliant
- Operating Supply Voltage :
- 333V
- Orientation :
- RIGHT ANGLE
- Contact Finish - Post :
- Tin-Lead
- PCB Thickness :
- 2.4mm
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Factory Lead Time :
- 14 Weeks
- Mount :
- Through Hole
- Published :
- 2006
- Insulation Resistance :
- 5GOhm
- Fastening Type :
- Push-Pull
- Contact Material :
- Phosphor Bronze
- Approval Agency :
- CSA
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polyester, Glass Filled
- Height :
- 6.0452mm
- Contact Resistance :
- 12mOhm
- Housing Color :
- Black
- Sealable :
- No
- Number of Positions :
- 36
- Lead Free :
- Contains Lead
- Mating Contact Pitch :
- 0.1 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- High Temperature Compatible :
- yes
- Lead Length :
- 2.92mm
- Depth :
- 8.13mm
- Housing Material :
- Polyester
- Insulation Height :
- 0.238 6.05mm
- ELV :
- Non-Compliant
- Current Rating :
- 2A
- Number Of PCB Rows :
- 2
- DIN Conformance :
- No
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mixed Contacts :
- No
- Mating Post Length :
- 3mm
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Packaging :
- Tube
- PCB Mounting Orientation :
- RIGHT ANGLE
- Datasheets
- 535512-5

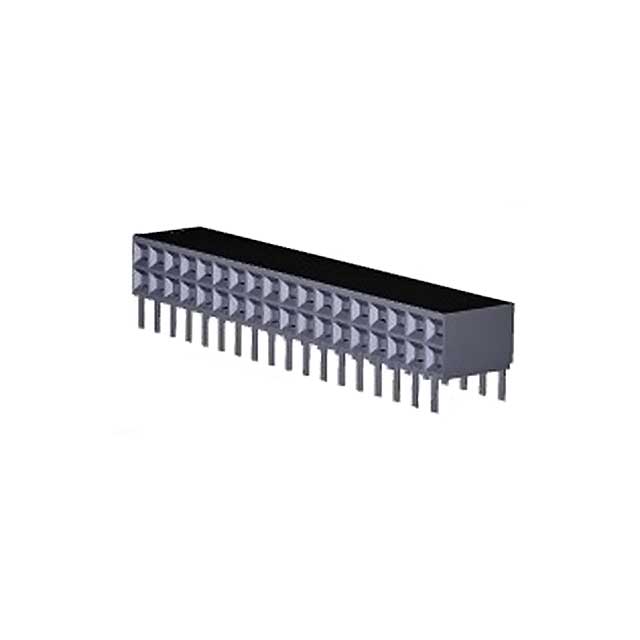

2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold Polyester, Glass Filled 36 Positions Female Socket
535512-5 Overview
Currently, it is packaged in Receptacle.Mounting type Through Hole, Right Angle is assigned to the device.Packaging the product involves using a Tube case.Among the products in the AMPMODU Mod II Series, it is one of the most popular.Through Hole is the mounting point for the part.There is a note indicating that this memory operates at an 333V volt supply voltage.-55°C~125°C Operating Temperature is used by the device.
