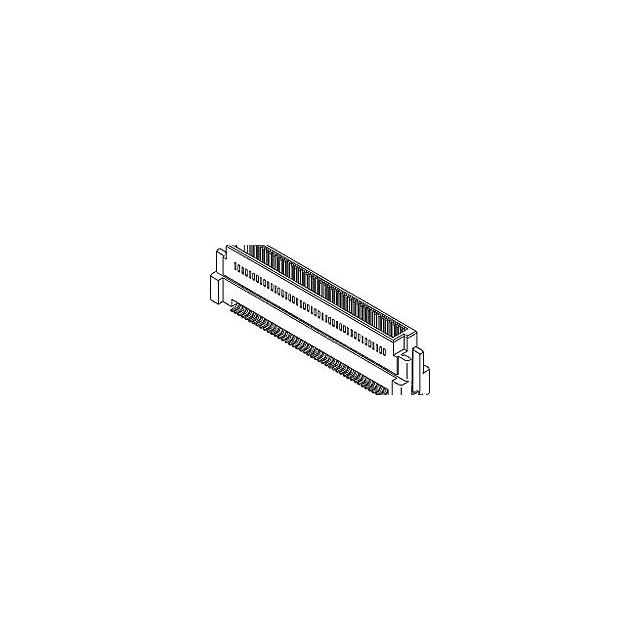

53553-1679

Manufacturer :

Molex

Product Category :

Unclassified

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Termination Method :

Solder

PCB Contact Row Spacing :

4.191 mm

Gender :

PLUG

Insertion Force-Max :

.6672 N

HTS Code :

8536.69.40.40

Contact Style :

SQ PIN-SKT

Plating Thickness :

10u inch

Body Orientation :

Straight

Pitch :

0.6400 mm

Terminal Pitch :

0.635 mm

Termination :

Solder

Mating Contact Pitch :

0.025 inch

Mounting Type :

BOARD

Voltage Rating Max :

100V

Board Mounting Option :

SOLDER HOLDING POSTS

Total Number of Contacts :

160

Filter Feature :

No

Plating :

Tin

Termination Type :

Surface Mount

JESD-609 Code :

e3

Number of Contacts :

160(POS)

Reference Standard :

UL

Rated Current (Signal) :

0.5 A

ECCN Code :

EAR99

IEC Conformance :

No

Contact Pattern :

RECTANGULAR

Durability :

50 Cycles

Body Depth :

0.354 inch

Pitch (mm) :

0.64(mm)

Type :

Board to Board

Product Length (mm) :

57.67(mm)

Product Length :

57.67 mm

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Operating Temp Range :

-55C to 105C

Subcategory :

Headers and Edge Type Connectors

Package :

Box

Product Depth (mm) :

5.2(mm)

Number of Circuits :

160

Contact Resistance Max :

70(mohm)

Number of Rows :

2

Current Rating (Max) :

0.5/Contact(A)

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Product Height (mm) :

9(mm)

Product Status :

Active

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Contact Rows :

2

Insulator Color :

Brown

Number Of PCB Rows :

2

Mounting Style :

Surface Mount

RoHS :

Compliant

Mounting Option 1 :

LOCKING

Body Breadth :

0.205 inch

Connector Type :

BOARD STACKING CONNECTOR

Packaging :

Tube

Radiation Hardening :

No

Option :

GENERAL PURPOSE

Contact Gender :

Male

Housing Color :

Natural

Manufacturer :

Molex

Series :

*

DIN Conformance :

No

Withdrawl Force-Min :

.1112 N

Body/Shell Style :

PLUG

Mixed Contacts :

No

Dielectric Withstanding Voltage :

250VAC V

Base/Housing Material :

Thermoplastic

Mounting :

Surface Mount

Operating Temperature :

-55 to 85 °C

Reach Compliance Code :

Compliant

MIL Conformance :

No

Contact Plating :

Gold

Orientation :

Vertical

Factory Lead Time :

9 Weeks

Insulation Resistance :

1000000000 Ω

Country of Origin :

JP

Reliability :

COMMERCIAL

Contact Material :

Brass
