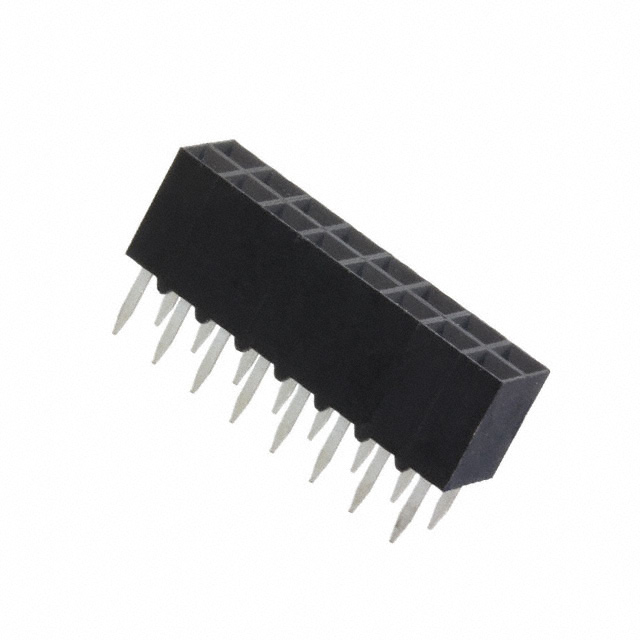

535585-8
Or copy the link below:
- Mfr.Part #
- 535585-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS 0.1 TIN-LEAD PCB
- Stock
- 40,482
- In Stock ：
- 40,482
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Mating :
- Tin-Lead
- Lead Free :
- Contains Lead
- Durability :
- 75 Cycles
- Series :
- AMPMODU Mod IV
- Number of Rows :
- 2
- Style :
- Board to Board or Cable
- Termination :
- Solder
- Plating Thickness :
- 80μin
- Insulation Resistance :
- 5000000000Ohm
- Number of Positions Loaded :
- All
- Contact Material :
- Phosphor Bronze
- Packaging :
- Tube
- Dielectric Withstanding Voltage :
- 750VAC V
- Withdrawl Force-Min :
- .417 N
- Number of Positions :
- 16
- Fastening Type :
- Push-Pull
- Contact Type :
- Female Socket
- Insulation Height :
- 0.265 6.73mm
- Additional Feature :
- PCB STANDOFF
- Mount :
- Through Hole
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 2
- Contact Plating :
- Lead, Tin
- Operating Temperature :
- -65°C~125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- RoHS Status :
- Non-RoHS Compliant
- Reference Standard :
- UL, CSA
- Mounting Type :
- Through Hole
- Insulation Color :
- Black
- Published :
- 2009
- Contact Length - Post :
- 0.125 3.18mm
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Current Rating (Amps) :
- 2A
- Insulation Material :
- Thermoplastic, Glass Filled
- Mating Contact Pitch :
- 0.1 inch
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Connector Type :
- Receptacle
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Pitch - Mating :
- 0.100 2.54mm
- Datasheets
- 535585-8
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Tin-Lead Thermoplastic, Glass Filled 16 Positions Female Socket
535585-8 Overview
A Receptacle packaging is included.It's mounted Through Hole.We use a Tube case to package the product.It's from the AMPMODU Mod IV Series.There are also other features like PCB STANDOFF, to name a few.It's mounted by Through Hole.-65°C~125°C Operating Temperature is what the device runs at.
535585-8 Features
AMPMODU Mod IV series
535585-8 Applications
There are a lot of TE Connectivity AMP Connectors
535585-8 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
