535541-9
Or copy the link below:
- Mfr.Part #
- 535541-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 11POS 0.1 GOLD PCB
- Stock
- 6,626
- In Stock ：
- 6,626
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Material :
- Phosphor Bronze
- Contact Length - Post :
- 0.125 3.18mm
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- DIN Conformance :
- No
- IEC Conformance :
- No
- Plating Thickness :
- 50μm
- Mixed Contacts :
- No
- Lead Length :
- 3.175mm
- Published :
- 2006
- Dielectric Withstanding Voltage :
- 750VAC V
- Termination :
- Solder
- JESD-609 Code :
- e0
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- ELV :
- Non-Compliant
- Housing Material :
- Polyester
- MIL Conformance :
- No
- Number of Conductors :
- ONE
- Mount :
- Through Hole
- Insulation Resistance :
- 5GOhm
- Lead Free :
- Contains Lead
- Current Rating :
- 2A
- Length :
- 27.94mm
- ECCN Code :
- EAR99
- Contact Current Rating :
- 3A
- Approval Agency :
- CSA
- PCB Mount Retention :
- Without
- Contact Type :
- Female Socket
- Terminal Pitch :
- 2.54mm
- Packaging :
- Tube
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -65°C~125°C
- RoHS Status :
- Non-RoHS Compliant
- Pitch - Mating :
- 0.100 2.54mm
- PCB Contact Pattern :
- RECTANGULAR
- Contact Resistance :
- 12mOhm
- UL Flammability Code :
- 94V-0
- Stackable :
- yes
- Housing Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Rows :
- 1
- HTS Code :
- 8536.69.40.40
- Contact Shape :
- Square
- PCB Thickness :
- 2.4mm
- Factory Lead Time :
- 14 Weeks
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 11
- Depth :
- 3.56mm
- Connector Type :
- Receptacle
- Insulation Material :
- Polyester, Glass Filled
- Operating Supply Voltage :
- 333V
- Insulation Height :
- 0.265 6.73mm
- Sealable :
- No
- Option :
- GENERAL PURPOSE
- Rated Current (Signal) :
- 2A
- Fastening Type :
- Push-Pull
- Orientation :
- Vertical
- Series :
- AMPMODU Mod IV
- Style :
- Board to Board or Cable
- Mounting Type :
- Through Hole
- Contact Gender :
- FEMALE
- Height :
- 3.56mm
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.18mm
- Number Of PCB Rows :
- 1
- Contact Finish - Post :
- Tin-Lead
- Additional Feature :
- Top Entry
- Voltage - Rated :
- 750V
- Datasheets
- 535541-9

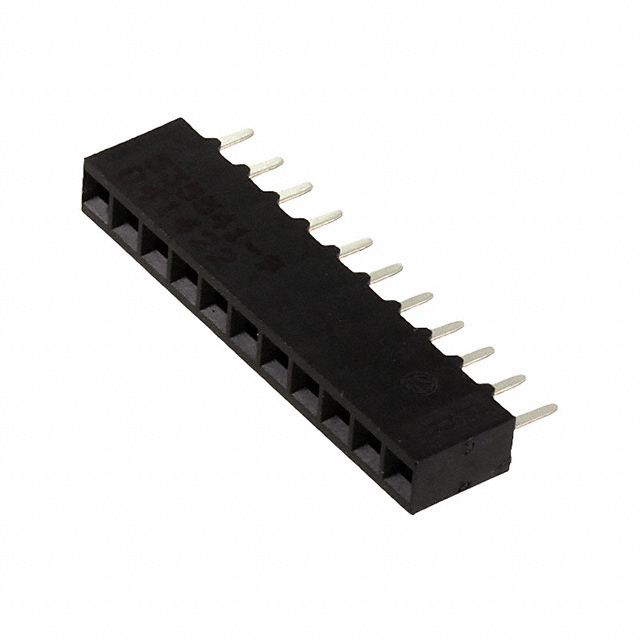

1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 11 Positions Female Socket
535541-9 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod IV Series.Other features include TOP ENTRY, to name just a few.There is a mounting hole at Through Hole.It runs on 333V voltage.Devices operate at -65°C~125°C operating temperatures.
