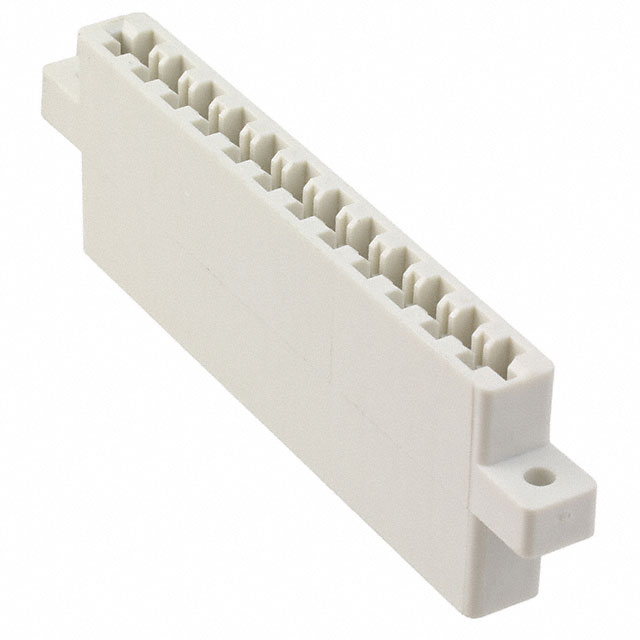

530521-9
Or copy the link below:
- Mfr.Part #
- 530521-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE HSG 24POS .312 NAT
- Stock
- 37,472
- In Stock ：
- 37,472
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Housings
- Contact Current Rating :
- 30A
- Number of Positions :
- 24
- Contact Resistance :
- 2MOhm
- Length :
- 35.56mm
- HTS Code :
- 8536.69.40.40
- Orientation :
- Straight
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.156 (3.96mm) Dia
- Housing Color :
- White
- Mount :
- Panel
- Operating Supply Voltage :
- 600V
- Packaging :
- Bulk
- Body Breadth :
- 0.437 inch
- Operating Temperature :
- -40°C~95°C
- Housing Material :
- Nylon
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Contact Style :
- BELLOWED TYPE
- Reference Standard :
- UL, CSA
- Number of Contacts :
- 12
- Note :
- Contacts Not Included
- Number of Rows :
- 1
- Mounting Type :
- Panel Mount
- Connector Type :
- Socket
- Published :
- 1997
- Contact Pattern :
- RECTANGULAR
- Card Thickness :
- 0.062 1.57mm
- Card Type :
- Non Specified - Dual Edge
- Height :
- 11.1mm
- MIL Conformance :
- No
- Feature :
- Flange
- Radiation Hardening :
- No
- Gender :
- Receptacle
- Reliability :
- COMMERCIAL
- Pbfree Code :
- yes
- Material - Insulation :
- Polyester Thermoplastic, Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- PCB Thickness :
- 1.57mm
- Current Rating :
- 30A
- Wire/Cable Gauge :
- 10 AWG
- Pitch :
- 0.312 7.92mm
- Filter Feature :
- No
- ELV :
- Compliant
- Color :
- Natural
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 8 Weeks
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Lead Free :
- Lead Free
- Datasheets
- 530521-9
