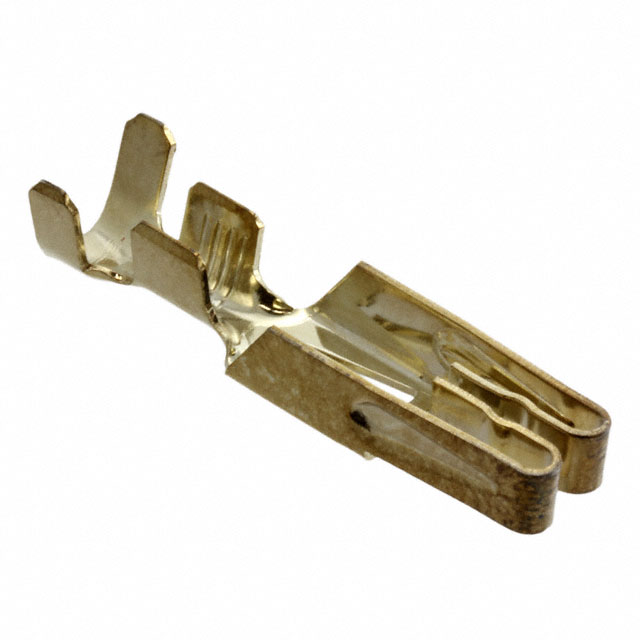

530519-2
Or copy the link below:
- Mfr.Part #
- 530519-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM EDGE 10-12AWG CRIMP TIN
- Stock
- 1,500
- In Stock ：
- 1,500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Contacts
- Shielding :
- Unshielded
- Published :
- 2004
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Min) :
- 10 AWG
- ECCN Code :
- EAR99
- Contact Plating :
- Lead, Tin
- Orientation :
- Straight
- Reach Compliance Code :
- not_compliant
- Lead Pitch :
- 312μm
- Gender :
- FEMALE
- RoHS Status :
- Non-RoHS Compliant
- Cable Entry-Max :
- 0.21 inch
- DIN Conformance :
- No
- Cable Entry-Min :
- 0.16 inch
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 22 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Termination :
- Crimp
- Contact Finish Thickness :
- 15.0μin 0.38μm
- ELV :
- Non-Compliant
- Length :
- 28.96mm
- Contact Finish :
- Tin
- Depth :
- 5.08mm
- Lead Free :
- Contains Lead
- MIL Conformance :
- No
- Insulation Diameter :
- 5.33 mm
- Mount :
- CABLE
- Pin or Socket :
- Non-Gendered
- PCB Thickness :
- 1.5748mm
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 5.08mm
- Wire/Cable Gauge :
- 12 AWG
- Wire Gauge :
- 10-12 AWG
- IEC Conformance :
- No
- Wire Gauge (Max) :
- 12 AWG
- Assembly Item Name :
- Contact
- Connector Type :
- Connector
- Datasheets
- 530519-2
