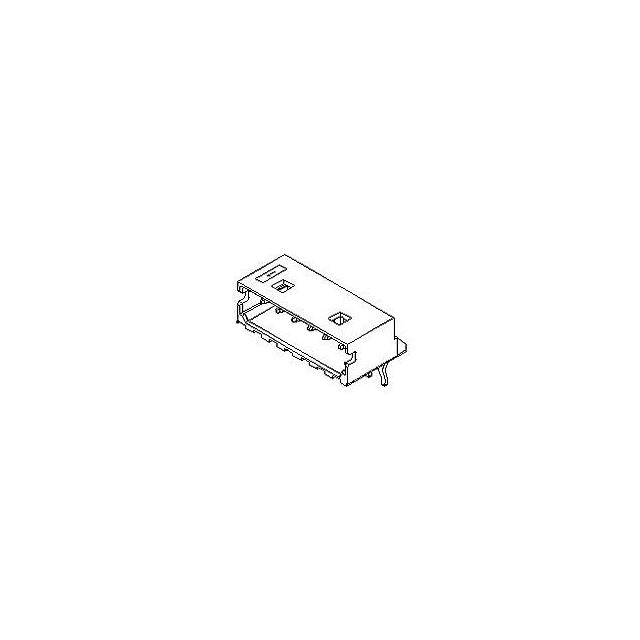

53015-0510
Or copy the link below:
- Mfr.Part #
- 53015-0510
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 5CKT 2.00MM L/P R/A CONN ASSY
- Stock
- 1,636
- In Stock ：
- 1,636
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Resistance Max :
- 20(mohm)
- Current Rating :
- 2.0A
- Product Length (mm) :
- 12(mm)
- Pitch (mm) :
- 2(mm)
- Series :
- MicroBlade
- Body Orientation :
- RIGHT ANGLE
- Connector System :
- Wire to Board
- Mounting Type :
- Through Hole
- Packaging :
- Bag-packed
- Current Rating (Max) :
- 2/Contact(A)
- Pitch :
- 2.0mm
- Contact Plating :
- TIN OVER NICKEL
- Termination Method :
- Solder
- Number of Contacts :
- 5(POS)
- Product Height (mm) :
- 4.65(mm)
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Housing Material :
- Nylon 6/6
- Number of Contact Rows :
- 1
- Number of Rows :
- 1
- Product Depth (mm) :
- 7.6(mm)
- Gender :
- HDR
- Mounting Style :
- Through Hole
- Operating Temp Range :
- -20C to 85C
- Voltage Rating Max :
- 125V
- Type :
- Shrouded Header
- Housing Color :
- Off-White
- Datasheets
- 53015-0510
