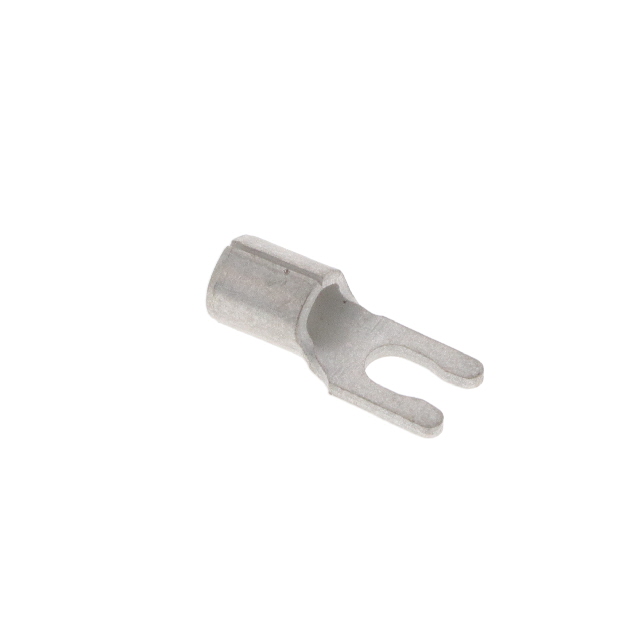

53013-1
Or copy the link below:
- Mfr.Part #
- 53013-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 10-12AWG #5
- Stock
- 9,977
- In Stock ：
- 9,977
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Contact Material :
- Phosphor Bronze
- Material :
- Bronze
- Series :
- Budget
- Factory Lead Time :
- 15 Weeks
- HTS Code :
- 8536.90.40.00
- Termination :
- Crimp
- Stud/Tab Size :
- 5 Stud
- Material Thickness :
- 1.07mm
- Wire Gauge (Min) :
- 12 AWG
- Length - Overall :
- 0.636 16.15mm
- Terminal Type :
- Spring, Snap
- Mount :
- Free Hanging
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 10 AWG
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Heavy Duty :
- No
- Wire Cross Section :
- 6.64 mm2
- Stud Size :
- M3
- Tongue Inside Opening :
- 0.098 (2.50mm)
- Wire Gauge :
- 10-12 AWG
- Pbfree Code :
- yes
- Tongue Thickness :
- 990μm
- Diameter - Inside :
- 3.4 mm
- Mounting Type :
- Free Hanging (In-Line)
- Insulation :
- Non-Insulated
- Published :
- 2010
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Length - Ring Center to Termination :
- 0.169 4.29mm
- Width - Outer Edges :
- 0.250 6.35mm
- Length - Termination :
- 0.278 7.06mm
- Contact Finish :
- Tin
- Length :
- 16.1544mm
- Lead Free :
- Not Applicable
- Feature :
- Serrated Termination
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Stud Diameter :
- 3.18 mm
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 53013-1
