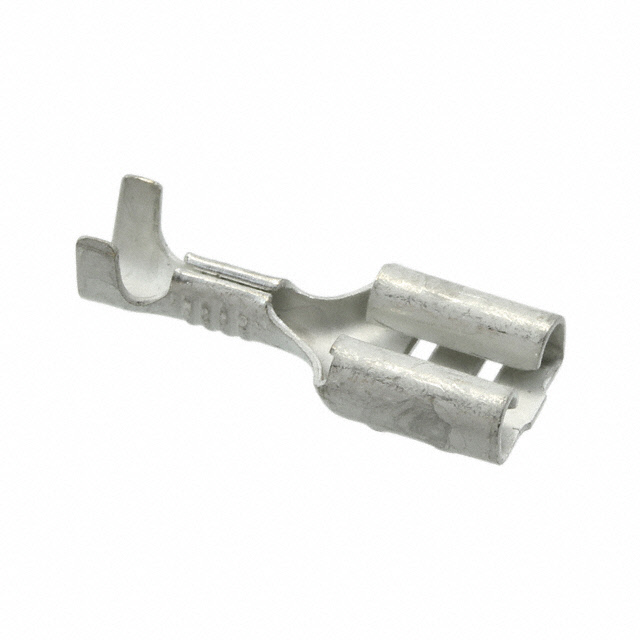

5-160506-2
Or copy the link below:
- Mfr.Part #
- 5-160506-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 15.5-20AWG 0.250
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Sealable :
- No
- Wire Gauge (Max) :
- 20 AWG
- Material :
- Brass
- Depth :
- 7.6mm
- Insulated Wire Support :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 0.091 ~ 0.130 (2.31mm ~ 3.30mm)
- Series :
- Faston
- Width - Tab :
- 0.250 6.35mm
- Packaging :
- Bulk
- Published :
- 2002
- Body Material :
- Brass
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Termination :
- Crimp
- Terminal Material :
- Brass
- Plating :
- Tin
- Body Plating :
- Tin
- Tab Thickness :
- 0.032 0.81mm
- Lead Free :
- Lead Free
- Wire Gauge (Min) :
- 5 AWG
- REACH SVHC :
- No SVHC
- Insulation :
- Non-Insulated
- Wire/Cable Diameter :
- 3.302 mm
- ELV :
- Compliant
- Wire Gauge :
- 15.5-20 AWG
- Contact Finish :
- Tin
- Contact Material :
- Brass
- Contact Plating :
- Tin
- Wire/Cable Gauge :
- 15 AWG
- Length :
- 20.193mm
- Gender :
- FEMALE
- Mount :
- Free Hanging
- Wire/Cable Type :
- Discrete
- Mounting Type :
- Free Hanging (In-Line)
- Length - Overall :
- 0.795 20.19mm
- Mating Tab Width :
- 6.35mm
- Orientation :
- Straight
- Terminal Type :
- Standard
- Factory Lead Time :
- 10 Weeks
- Datasheets
- 5-160506-2
5-160506-2 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
