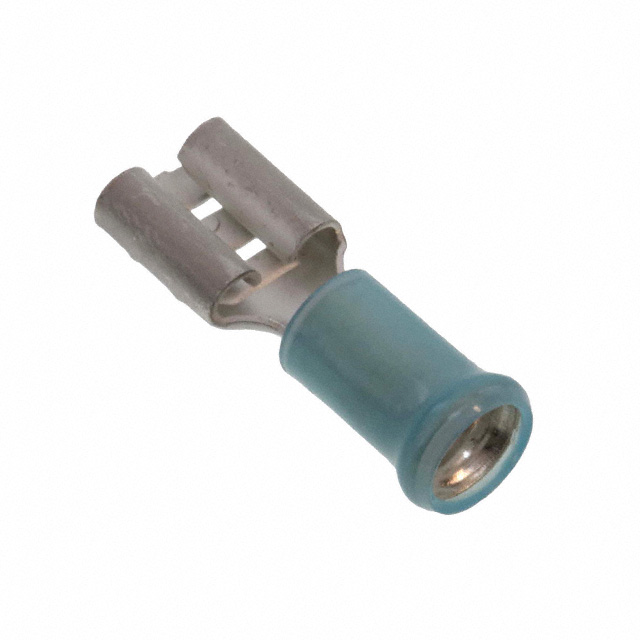

5-160313-2
Or copy the link below:
- Mfr.Part #
- 5-160313-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 250 PIDG FASTON REC
- Stock
- 23,151
- In Stock ：
- 23,151
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Width - Tab :
- 0.250 6.35mm
- Wire Gauge (Min) :
- 5 AWG
- Depth :
- 7.6mm
- ECCN Code :
- EAR99
- Termination :
- Crimp
- Terminal Type :
- Standard
- Mating Tab Width :
- 6.35mm
- Wire Cross Section :
- 2.6 mm2
- Insulation Diameter :
- 0.169 (4.29mm)
- Insulation Material :
- Nylon
- Length - Overall :
- 0.913 23.20mm
- HTS Code :
- 8536.90.40.00
- Color :
- Blue
- Orientation :
- Straight
- Contact Plating :
- Tin
- Packaging :
- Cut Tape (CT)
- Factory Lead Time :
- 31 Weeks
- Wire Gauge :
- 13-17 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Lead Free :
- Not Applicable
- Sealable :
- No
- Insulation :
- Non-Mating End Insulated
- Published :
- 1997
- Gender :
- FEMALE
- Contact Material :
- Brass
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Faston, PIDG
- Wire Gauge (Max) :
- 17 AWG
- Insulated Wire Support :
- yes
- Length :
- 23.1902mm
- ELV :
- Compliant
- Length - Tab :
- 0.303 7.70mm
- Tab Thickness :
- 0.032 0.81mm
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- RoHS Compliant
- Datasheets
- 5-160313-2
5-160313-2 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
