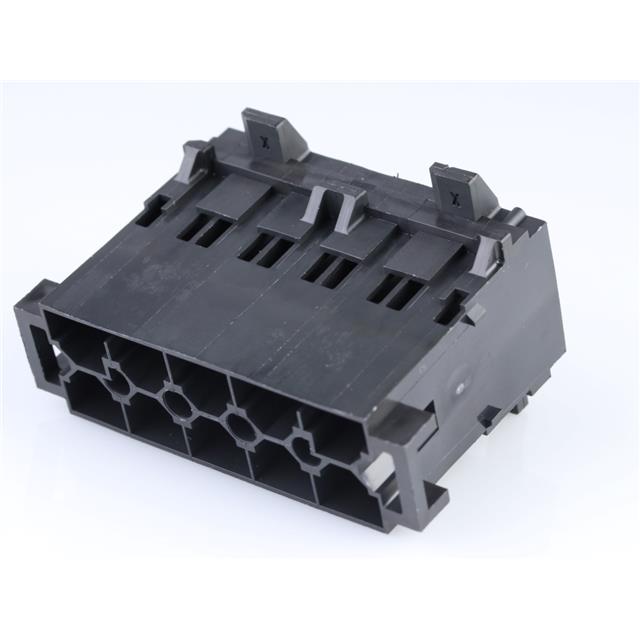

43938-2203

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mounting Style :

Panel Mount

IEC Conformance :

No

Reference Standard :

CSA, UL

Housing Color :

Black

Reach Compliance Code :

Compliant

Product Status :

Active

Product Type :

Headers and Wire Housings

RoHS :

Details

Shell Material :

Polyester

Brand :

Molex

Filter Feature :

No

Flammability Rating :

UL 94 V-0

Pitch (mm) :

10(mm)

Minimum Operating Temperature :

- 40 C

Operating Temp Range :

-40C to 105C

Option :

GENERAL PURPOSE

Contact Gender :

Pin (Male)

Insulation Resistance :

1000000000 Ω

Number of Contacts :

10(POS)

Insulator Color :

Black

Pbfree Code :

yes

Contact Material :

NOT SPECIFIED

Connector Type :

RECTANGULAR POWER CONNECTOR

Mounting Option 1 :

LOCKING

Contact Style :

SQ PIN-SKT

Product Category :

Headers and Wire Housings

ECCN Code :

EAR99

Voltage Rating Max :

600VDC/600VAC

Type :

Housing

Body Breadth :

1.461 inch

Mixed Contacts :

No

Manufacturer :

Molex

Contact Pattern :

RECTANGULAR

Tradename :

Mini-Fit Sr.

Additional Feature :

MINI-FIT SR, POLARIZED

Body Depth :

1.559 inch

Termination Type :

Crimp

Application :

Power

Subcategory :

Headers and Wire Housings

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Contact Rows :

2

Withdrawl Force-Min :

4.8928 N

Insertion Force-Max :

9.7856 N

Total Number of Contacts :

10

Packaging :

Bag

Housing Material :

Polyester

Gender :

Receptacle

Number of Positions :

10 Position

Housing Gender :

Male

Maximum Operating Temperature :

+ 105 C

Empty Shell :

yes

Mounting Type :

Panel

Polarization Key :

POLARIZED HOUSING

Pitch :

10 mm

Body Orientation :

Straight

Product Depth (mm) :

37.1(mm)

Product Height (mm) :

39.6(mm)

Mating Contact Pitch :

0.394 inch

HTS Code :

8536.69.40.30

MIL Conformance :

No

Package :

Box

Number of Rows :

2 Row

Product Length (mm) :

61.3(mm)

DIN Conformance :

No

Termination Style :

Crimp

Series :

43938

Panel Mount :

No

UL Flammability Code :

94V-0

Body/Shell Style :

PLUG

Dielectric Withstanding Voltage :

2200VAC V

Current Rating :

50 A

Reliability :

COMMERCIAL

Product :

Wire Housings

Color :

Gray
