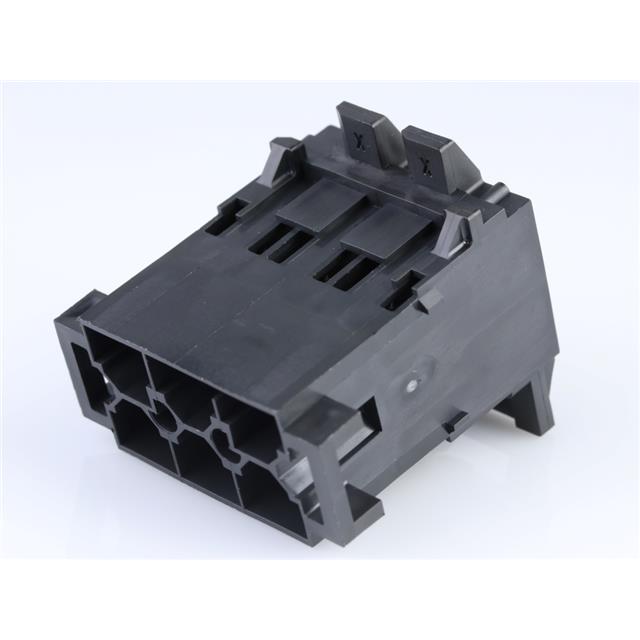

43938-2201

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Brand :

Molex

Empty Shell :

yes

Number of Positions :

6 Position

MIL Conformance :

No

UL Flammability Code :

94V-0

Tradename :

Mini-Fit Sr.

ECCN Code :

EAR99

Flammability Rating :

UL 94 V-0

Panel Mount :

No

Color :

Black

Mounting Option 1 :

LOCKING

Total Number of Contacts :

6

Product Status :

Active

IEC Conformance :

No

Insulator Color :

Black

HTS Code :

8536.69.40.30

Pbfree Code :

yes

Gender :

Receptacle

Body/Shell Style :

PLUG

Current Rating :

50 A

Termination Type :

Crimp

Mounting Style :

-

RoHS :

Details

Packaging :

Bulk

Insulation Resistance :

1000000000 Ω

Contact Style :

SQ PIN-SKT

Series :

43938

Contact Gender :

Male

Mounting Type :

Panel

Pitch :

10 mm

Product Type :

Headers and Wire Housings

Mating Contact Pitch :

0.394 inch

Minimum Operating Temperature :

- 40 C

Application :

Signal

Housing Color :

Black

Housing Material :

Polyester

Type :

Plug Housing

Termination Style :

-

Housing Gender :

Male

Additional Feature :

MINI-FIT SR, POLARIZED

Number of Rows :

2 Row

Polarization Key :

POLARIZED HOUSING

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reach Compliance Code :

Compliant

Insertion Force-Max :

9.7856 N

Product :

Wire Housings

Shell Material :

Polyester

Option :

GENERAL PURPOSE

Contact Material :

NOT SPECIFIED

Connector Type :

RECTANGULAR POWER CONNECTOR

Reference Standard :

CSA, UL

Maximum Operating Temperature :

+ 105 C

Body Depth :

1.559 inch

Mixed Contacts :

No

Product Category :

Headers and Wire Housings

Package :

Box

Withdrawl Force-Min :

4.8928 N

Contact Pattern :

RECTANGULAR

Body Breadth :

1.461 inch

DIN Conformance :

No

Reliability :

COMMERCIAL

Dielectric Withstanding Voltage :

2200VAC V

Filter Feature :

No
