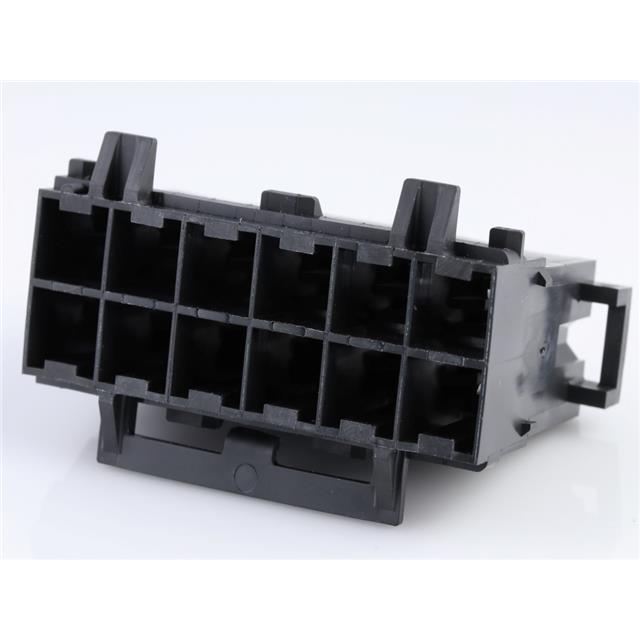

43938-2104

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Reliability :

COMMERCIAL

IEC Conformance :

No

Factory Lead Time :

10 Weeks

Contact Pattern :

RECTANGULAR

Tradename :

Mini-Fit Sr.

MIL Conformance :

No

Housing Color :

Black

Contact Style :

SQ PIN-SKT

Body Breadth :

1.461 inch

Mounting Option 1 :

POLARIZED LCK

Application :

Signal

Housing Material :

Polyester

Product Length (mm) :

71.3(mm)

Number of Rows :

2 Row

Maximum Operating Temperature :

+ 105 C

Subcategory :

Headers and Wire Housings

Body/Shell Style :

PLUG

Mounting Option 2 :

LOCKING

Number of Contact Rows :

2

Additional Feature :

SR, POSITIVE LOCK

Gender :

PLUG

Number of Contacts :

12(POS)

Mating Information :

43914

Current Rating :

50 A

Body Depth :

1.559 inch

Product Height (mm) :

39.6(mm)

Operating Temperature :

-40 to 105 °C

UL Flammability Code :

94V-0

Product Length :

71.3 mm

Pbfree Code :

yes

Current Rating (Max) :

43/Contact(A)

Manufacturer :

Molex

Product :

Wire Housings

Flammability Rating :

UL 94 V-0

Total Number of Contacts :

12

Termination Style :

Crimp

Brand :

Molex

Minimum Operating Temperature :

- 40 C

Contact Material :

NOT SPECIFIED

Reach Compliance Code :

Compliant

Shell Material :

Polyester

Product Status :

Active

Mixed Contacts :

No

Withdrawl Force-Min :

4.8928 N

Contact Gender :

Pin (Male)

Filter Feature :

No

Product Depth (mm) :

37.1(mm)

Panel Mount :

No

Mounting Type :

CABLE/PANEL

DIN Conformance :

No

ECCN Code :

EAR99

Product Category :

Headers and Wire Housings

Reference Standard :

CSA, UL

Insulator Color :

Black

Connector Type :

RECTANGULAR POWER CONNECTOR

Type :

Housing

Package :

Box

Color :

Natural

Body Orientation :

Straight

Pitch (mm) :

10(mm)

Base/Housing Material :

Polyester

Packaging :

Bag

Housing Gender :

Male

Number of Positions :

12 Position

Insertion Force-Max :

9.7856 N

Polarization Key :

POLARIZED HOUSING

Dielectric Withstanding Voltage :

2200VAC V

Option :

GENERAL PURPOSE

Mating Contact Pitch :

0.394 inch

Pitch :

10.0000 mm

Mounting Style :

Panel Mount

Product Type :

Headers and Wire Housings

Empty Shell :

yes

Insulation Resistance :

1000000000 Ω

Series :

43938

RoHS :

Details

Operating Temp Range :

-40C to 105C

HTS Code :

8536.69.40.30

Voltage Rating Max :

600V
