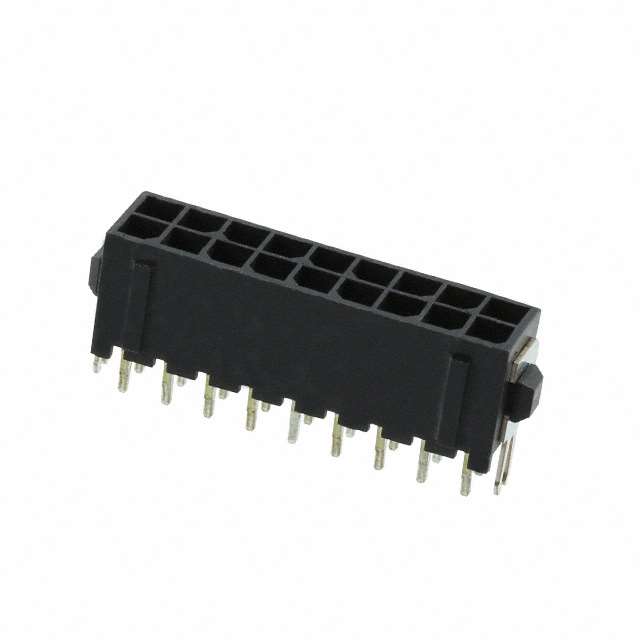

4-794682-8
Or copy the link below:
- Mfr.Part #
- 4-794682-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 3MM
- Stock
- 35,003
- In Stock ：
- 35,003
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Supply Voltage :
- 250V
- Contact Type :
- Male Pin
- Contact Plating :
- Gold, Tin
- Published :
- 2008
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Height :
- 0.364 9.25mm
- Applications :
- GENERAL PURPOSE
- Plating Thickness :
- 760 nm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Post :
- 0.125 3.18mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Series :
- Micro MATE-N-LOK
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 18
- Contact Material :
- Brass
- Number of Signal Positions :
- 0
- Factory Lead Time :
- 15 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Power
- Orientation :
- Vertical
- Number of Power Positions :
- 18
- Contact Shape :
- Square
- Voltage - Rated :
- 250V
- Length :
- 31mm
- Mount :
- Through Hole
- Contact Gender :
- Male
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Color :
- Black
- Current Rating :
- 5A
- Number of Positions :
- 18
- Max Voltage Rating (AC) :
- 250V
- Radiation Hardening :
- No
- Contact Finish - Mating :
- Gold
- Contact Retention :
- Without
- Packaging :
- Tray
- Number of Ports :
- 1
- Feature :
- Board Lock
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Width :
- 6.86mm
- Number of Rows :
- 2
- Plating :
- Tin
- Min Operating Temperature :
- -40°C
- Fastening Type :
- Locking Ramp
- Connector Type :
- Header
- Depth :
- 8.67mm
- Housing Color :
- Black
- Sealable :
- No
- Shrouding :
- Shrouded - 4 Wall
- Lead Length :
- 3.18mm
- Insulation Color :
- Black
- Pitch - Mating :
- 0.118 3.00mm
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Operating Temperature :
- -40°C~105°C
- Number of Positions Loaded :
- All
- Number of Terminations :
- 18
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 105°C
- Pitch :
- 3mm
- Housing Material :
- Nylon
- Mounting Type :
- Through Hole
- Datasheets
- 4-794682-8
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 18-Position Board to Cable/Wire 0.364 9.25mm Height
4-794682-8 Overview
A Header packaging is included.It's mounted Through Hole.We use a Tray case to package the product.It's from the Micro MATE-N-LOK Series.Ideally, it should be used at temperatures below 105°C.Temperatures below -40°C are required for this device.You can manage a variety of tasks with its 1 ports.The device could be used for General Purpose.In many ways, its Board Lock feature makes it more powerful.It's mounted by Through Hole.Chips with terminations of 18 are available.Operating voltage is 250V.-40°C~105°C Operating Temperature is what the device runs at.
4-794682-8 Features
18 basic kinds of terminations
Micro MATE-N-LOK series
4-794682-8 Applications
There are a lot of TE Connectivity AMP Connectors
4-794682-8 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
