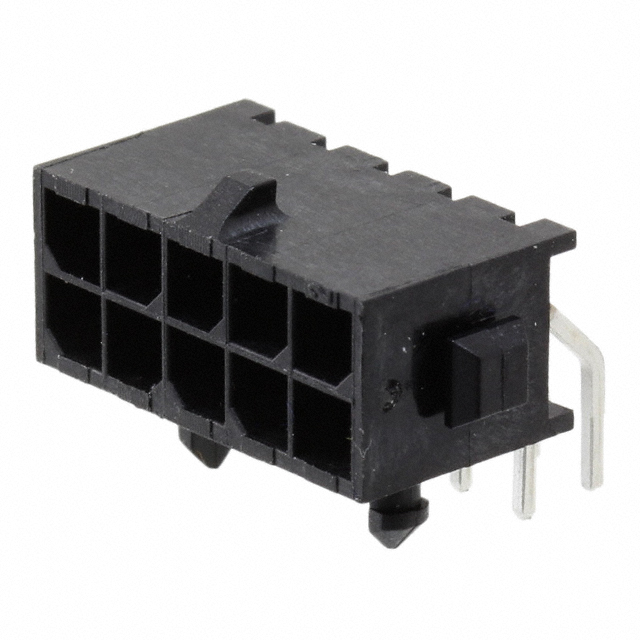

4-794619-0
Or copy the link below:
- Mfr.Part #
- 4-794619-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 3MM
- Stock
- 1,475
- In Stock ：
- 1,475
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Ports :
- 1
- Number of Positions :
- 10
- Number of Power Positions :
- 10
- Housing Color :
- Black
- Number of Rows :
- 2
- Feature :
- Board Lock
- Depth :
- 11.92mm
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.118 3.00mm
- Contact Retention :
- Without
- Termination :
- Solder
- Applications :
- GENERAL PURPOSE
- Contact Shape :
- Square
- Published :
- 2008
- Factory Lead Time :
- 19 Weeks
- Number of Positions Loaded :
- All
- Max Operating Temperature :
- 221°C
- Pitch :
- 2.9972mm
- PCB Thickness :
- 1.6002mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 250V
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Packaging :
- Tray
- Mounting Type :
- Through Hole, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 5A
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Terminations :
- 10
- Number of Contacts :
- 10
- Insulation Color :
- Black
- Sealable :
- No
- Fastening Type :
- Locking Ramp
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Housing Material :
- Nylon
- Plating Thickness :
- 380 nm
- Contact Finish - Mating :
- Gold
- Circuit Application :
- Power
- Series :
- Micro MATE-N-LOK
- Operating Temperature :
- -40°C~105°C
- Orientation :
- RIGHT ANGLE
- Operating Supply Voltage :
- 250V
- Color :
- Black
- Contact Type :
- Male Pin
- Max Voltage Rating (AC) :
- 250V
- Contact Material :
- Brass
- Current Rating :
- 5A
- Current Rating (Amps) :
- Varies by WireGAuge
- ELV :
- Compliant
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Length :
- 19mm
- Approval Agency :
- CSA
- Contact Finish - Post :
- Tin
- Plating :
- Gold
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Height :
- 0.290 7.37mm
- VDE Tested :
- yes
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Plating :
- Tin, Gold
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Min Operating Temperature :
- -40°C
- Datasheets
- 4-794619-0
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyamide (PA), Nylon 10-Position Board to Cable/Wire 0.290 7.37mm Height
4-794619-0 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the Micro MATE-N-LOK Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -40°C degrees.There are 1 ports available for a variety of tasks to be performed on it.This device may be used for the purpose of General Purpose.A number of features make the Board Lock feature more powerful.Through Hole represents the mounting point for the part.A 10 termination is present on the chip.You're going to need 250V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
4-794619-0 Features
10 basic kinds of terminations
Micro MATE-N-LOK series
4-794619-0 Applications
There are a lot of TE Connectivity AMP Connectors
4-794619-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
