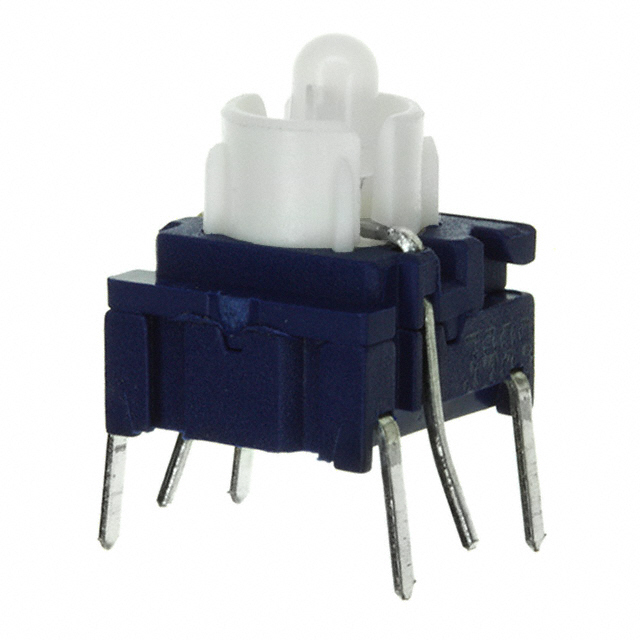

3FTL68020

Manufacturer :

MEC switches

Product Category :

Switch Function :

Off-Mom

Surface Mount :

No

Packaging :

Tube

Switch Type :

PUSHBUTTON SWITCH

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Actuator Material :

Polybutylene Terephthalate (PBT)

Mechanical Life :

10,000,000 Cycles

Electrical Life :

10000000 Cycle(s)

Illumination :

Illuminated

Operating Temperature :

-40°C~115°C

Illumination Voltage (Nominal) :

2.0 2.1VDC

Operating Force :

300gf

Contact Current(DC)-Max :

0.05A

Actuator Orientation :

Top Actuated

Outline :

10.10mm x 10.10mm

Feature :

Sealed - Flux Protection

RoHS Status :

RoHS Compliant

Contact Rating @ Voltage :

0.05A @ 24VDC

Termination Style :

PC Pin

Illumination Type, Color :

LED, Red/Green

Body Height :

8.2mm

Body Length or Diameter :

12.5mm

Ingress Protection :

IP67 - Dust Tight, Waterproof

Body Breadth :

9.6 mm

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Published :

2002

HTS Code :

8536.50.90.31

Actuator Type :

Plunger for Cap

Contact (DC) Max Rating R Load :

.05A@24VDC

Mounting Type :

Through Hole

Circuit :

SPST-NO

Series :

Multimec® 3

Switch Travel :

1.00mm

Actuator Height off PCB, Vertical :

10.40mm
