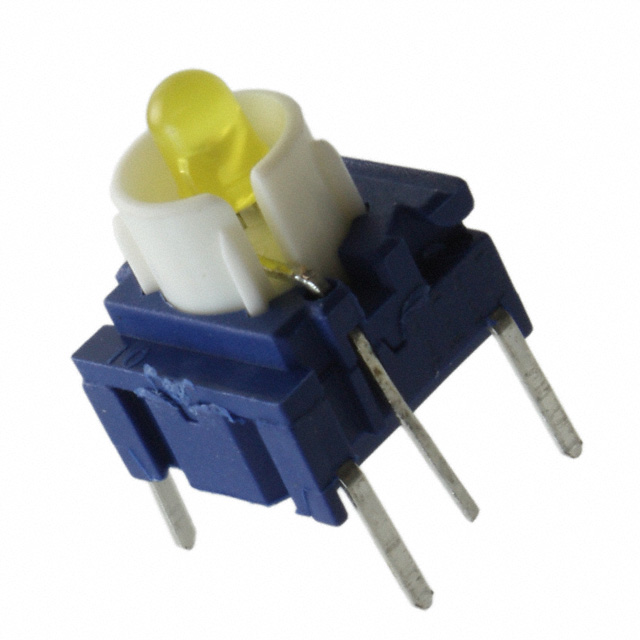

3FTL640

Manufacturer :

MEC switches

Product Category :

Illumination Type :

Illuminated, LED

Operating Temperature :

-40°C~115°C

Throw Configuration :

SPST

RoHS Status :

RoHS Compliant

Illumination :

Illuminated

Illumination Type, Color :

LED, Yellow

Contact Current Rating :

50mA

Mount :

Through Hole

Actuator Orientation :

Top Actuated

Contact Current(DC)-Max :

0.05A

Series :

Multimec® 3

Packaging :

Tube

Contact Material :

Gold, Silver

HTS Code :

8536.50.90.31

Published :

2003

Contact Rating @ Voltage :

0.05A @ 24VDC

Electrical Life :

10000000 Cycle(s)

Contact (DC) Max Rating R Load :

.05A@24VDC

Body Breadth :

9.6 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

PC Pin

Switch Type :

PUSHBUTTON SWITCH

Switch Travel :

1.00mm

ECCN Code :

EAR99

Actuator Type :

Plunger for Cap

Ratings :

Dust Tight, IP67, Waterproof

Actuator Material :

Polybutylene Terephthalate (PBT)

Mechanical Life :

10,000,000 Cycles

Body Length or Diameter :

12.5mm

Illumination Voltage (Nominal) :

2.1VDC

Switch Function :

Off-Mom

Termination Style :

PC Pin

Feature :

Sealed - Flux Protection

Ingress Protection :

IP67 - Dust Tight, Waterproof

Actuator Height off PCB, Vertical :

10.40mm

Body Height :

8.2mm

Mounting Type :

Through Hole

Circuit :

SPST-NO

Outline :

10.10mm x 10.10mm

Operating Force :

300gf
