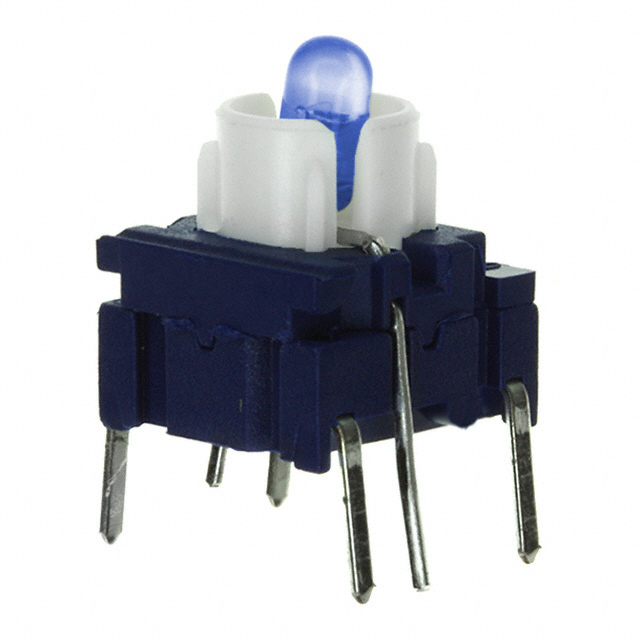

3FTL600

Manufacturer :

MEC switches

Product Category :

Circuit :

SPST-NO

Contact (DC) Max Rating R Load :

.05A@24VDC

ECCN Code :

EAR99

Illumination Type, Color :

LED, Blue

Contact Current(DC)-Max :

0.05A

Switch Function :

Off-Mom

Actuator Material :

Polybutylene Terephthalate (PBT)

Contact Rating @ Voltage :

0.05A @ 24VDC

Surface Mount :

No

Published :

2003

Series :

Multimec® 3

HTS Code :

8536.50.90.31

Feature :

Sealed - Flux Protection

Switch Type :

PUSHBUTTON SWITCH

Body Breadth :

9.6 mm

Mechanical Life :

10,000,000 Cycles

RoHS Status :

RoHS Compliant

Switch Travel :

1.00mm

Electrical Life :

10000000 Cycle(s)

Termination Style :

PC Pin

Body Height :

8.2mm

Packaging :

Tube

Operating Temperature :

-40°C~115°C

Outline :

10.10mm x 10.10mm

Actuator Type :

Plunger for Cap

Actuator Height off PCB, Vertical :

10.40mm

Operating Force :

300gf

Reach Compliance Code :

Compliant

Ingress Protection :

IP67 - Dust Tight, Waterproof

Illumination :

Illuminated

Illumination Voltage (Nominal) :

2.1VDC

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Length or Diameter :

12.5mm

Actuator Orientation :

Top Actuated
