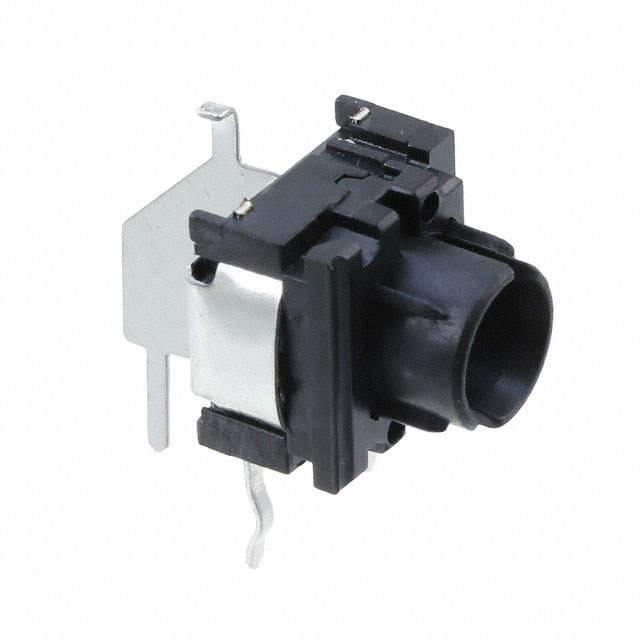

3FTH9RAS

Manufacturer :

MEC switches

Product Category :

ECCN Code :

EAR99

Tradename :

multimec

Operating Force :

3.5(N)

Electrical Life :

10000000 Cycle(s)

Contact Form :

SPST

Circuit Configuration :

1x1

Operating Temp Range :

-40C to 160C

Actuator :

Plunger

Current Rating :

50 mA

Lamp Type :

-

Mounting Style :

Through Hole

Switch Action :

Momentary

RoHS :

Details

IP Rating :

IP67

Termination Style :

Solder Pin

Product Depth (mm) :

20.1(mm)

Width :

10.1 mm

Switch Function :

OFF - (ON)

Pole Throw Configuration :

SPST

Body Orientation :

Straight

Mounting Feature :

THROUGH HOLE-RIGHT ANGLE

Product Height (mm) :

12(mm)

Switch Type :

KEYPAD SWITCH

Body Breadth :

10 mm

Product Length (mm) :

10.5(mm)

Termination Type :

Solder

Length :

10.1 mm

Contact Voltage(DC)-Max :

24 V

Sealing :

IP67

Contact Current(DC)-Max :

0.05 A

Illumination Color :

-

Illumination Type :

LED

Reach Compliance Code :

Compliant

Operating Force-Max :

3.5 N

Body Height :

12 mm

Terminal Type :

PC Pins

Series :

3F

Number of Switches :

1

Body Length or Diameter :

17.8 mm

Actuator Style :

Round Button

Switch Function Configuration :

N.O.

Current Rating (Max) :

0.05(A)

Surface Mount :

No

Voltage Rating (VDC) :

24(V)

Color :

Black
