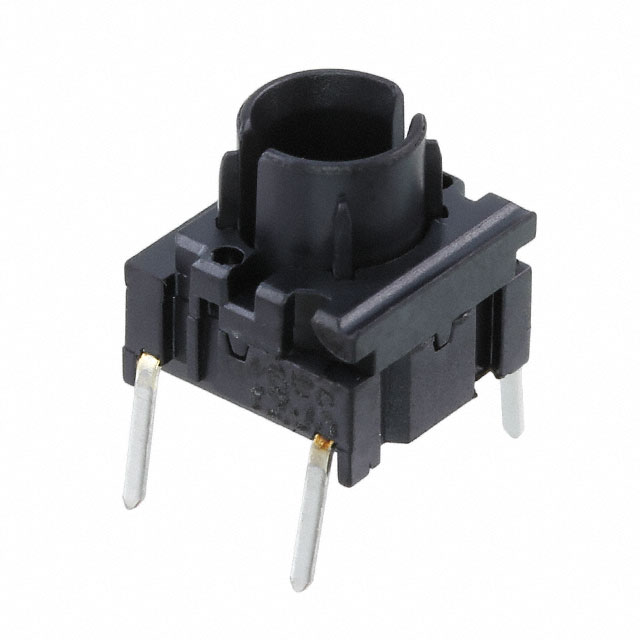

Mfr.Part #
3FTH9
Manufacturer
MEC switches
Package / Case
Datasheet
Download
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Stock
2,050
In Stock :
2,050

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
MEC switches
Product Category :
Actuator Height off PCB, Vertical :
10.40mm
HTS Code :
8536.50.90.31
Width :
10mm
RoHS Status :
ROHS3 Compliant
Illumination :
Non-Illuminated
Length :
10mm
Material :
Plastic
Number of Positions :
2
Feature :
Sealed - Flux Protection
Mounting Type :
Through Hole
Packaging :
Tube
Electrical Life :
10000000 Cycle(s)
Factory Lead Time :
29 Weeks
ECCN Code :
EAR99
Current Rating :
50mA
Outline :
10.10mm x 10.10mm
Mount :
Through Hole
Voltage - Rated DC :
24V
Actuator Length :
4mm
Switch Type :
PUSHBUTTON SWITCH
Body Breadth :
9.6 mm
Operating Force :
300gf
Termination Style :
PC Pin
Actuator Material :
Polybutylene Terephthalate (PBT)
Ratings :
Dust Tight, IP67, Waterproof
Contact Current Rating :
50mA
Contact Rating @ Voltage :
0.05A @ 24VDC
Mechanical Life :
10,000,000 Cycles
Published :
2014
Contact Material :
Silver
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Switch Travel :
1.00mm
Series :
Multimec® 3
Actuator Type :
Plunger for Cap
Contact Current(DC)-Max :
0.05A
Operating Temperature :
-40°C~160°C
Throw Configuration :
SPST
Switch Function :
Off-Mom
Actuator Orientation :
Top Actuated
Ingress Protection :
IP67 - Dust Tight, Waterproof
Termination :
PC Pin
Voltage - Rated :
24V
Circuit :
SPST-NO
PCB Hole Count :
4
Datasheets
3FTH9
Introducing MEC switches 3FTH9 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-40°C~160°C, Circuit:SPST-NO, 3FTH9 pinout, 3FTH9 datasheet PDF, 3FTH9 amp .Beyond MEC switches 3FTH9 ,we also offer F9TYP5E5EANF097, F9TYP5E5EANF098, F9TYP5E5EANF099, Our vast inventory has you covered. Contact us now for immediate solutions.
