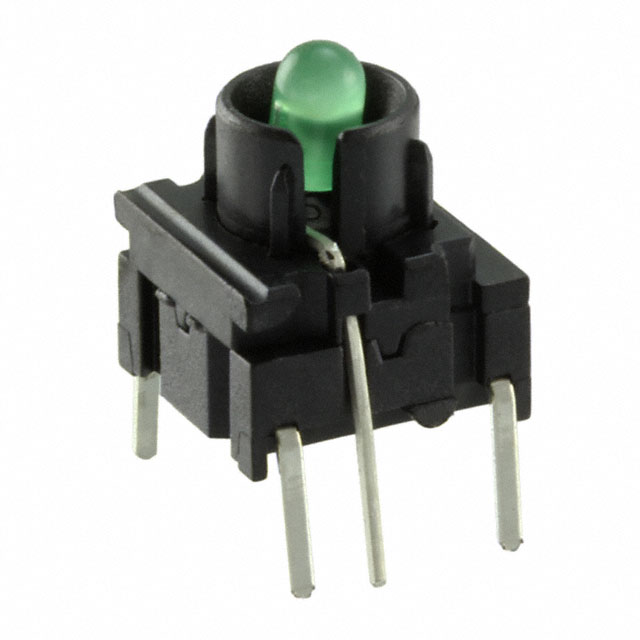

3FTH920

Manufacturer :

MEC switches

Product Category :

Contact (DC) Max Rating R Load :

.05A@24VDC

Mechanical Life :

10,000,000 Cycles

Body Length or Diameter :

12.5mm

Switch Type :

PUSHBUTTON SWITCH

Feature :

Sealed - Flux Protection

Circuit :

SPST-NO

Packaging :

Tube

Electrical Life :

10000000 Cycle(s)

Contact Material :

Silver

Factory Lead Time :

29 Weeks

Mount :

Through Hole

Switch Function :

Off-Mom

ECCN Code :

EAR99

Outline :

10.10mm x 10.10mm

RoHS Status :

ROHS3 Compliant

Current Rating :

50mA

Illumination Type, Color :

LED, Green

Ingress Protection :

IP67 - Dust Tight, Waterproof

Operating Force :

300gf

Throw Configuration :

SPST

Illumination Voltage (Nominal) :

2.1VDC

Contact Rating @ Voltage :

0.05A @ 24VDC

Actuator Height off PCB, Vertical :

10.40mm

Switch Travel :

1.00mm

Illumination Type :

Illuminated, LED

Termination :

PC Pin

Operating Temperature :

-40°C~160°C

Mounting Type :

Through Hole

Contact Current(DC)-Max :

0.05A

Actuator Type :

Plunger for Cap

Termination Style :

PC Pin

Body Height :

8.2mm

Actuator Orientation :

Top Actuated

Body Breadth :

9.6 mm

Series :

Multimec® 3

Ratings :

Dust Tight, IP67, Waterproof

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Illumination :

Illuminated

HTS Code :

8536.50.90.31

Published :

2015

Actuator Material :

Polybutylene Terephthalate (PBT)
