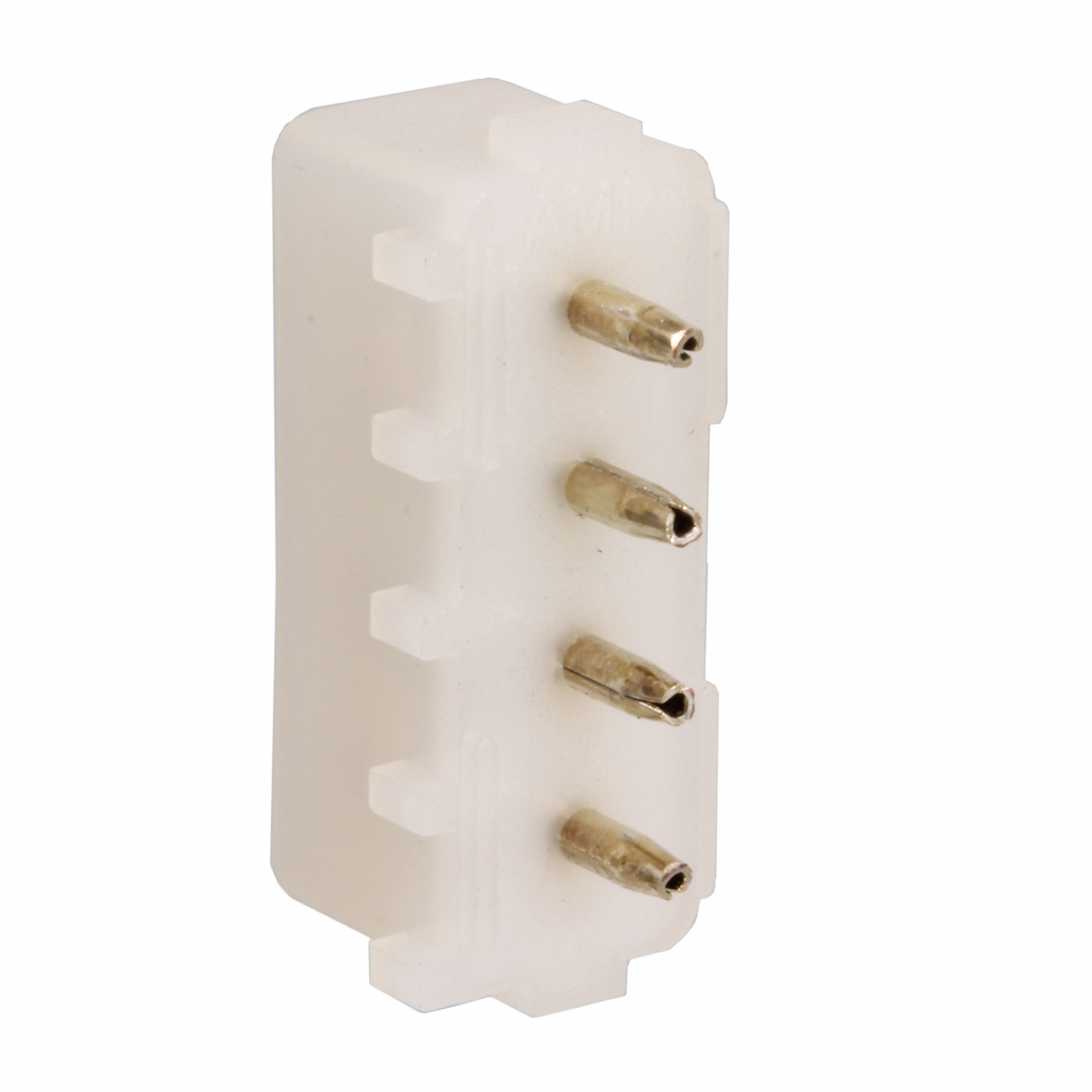

350211-3
Or copy the link below:
- Mfr.Part #
- 350211-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 5.08MM
- Stock
- 250
- In Stock ：
- 250
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 12A
- Max Voltage Rating (AC) :
- 250V
- Contact Length - Mating :
- 0.181 4.60mm
- Number of Positions Loaded :
- All
- Pbfree Code :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Published :
- 2008
- Current Rating :
- 13A
- Style :
- Board to Cable/Wire
- Fastening Type :
- Detent Lock
- Connector Type :
- Header
- RoHS Status :
- Non-RoHS Compliant
- Number of Contacts :
- 4
- PCB Mounting Orientation :
- Vertical
- Contact Length - Post :
- 0.150 3.81mm
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -55°C~105°C
- Number of Rows :
- 1
- ELV :
- Non-Compliant
- Mixed Contacts :
- No
- Series :
- Commercial MATE-N-LOK
- Contact Type :
- Male Pin
- Filter Feature :
- No
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.375 9.53mm
- Factory Lead Time :
- 21 Weeks
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Gender :
- Male
- Contact Finish - Post :
- Tin-Lead
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Bulk
- Voltage - Rated :
- 250VAC
- Radiation Hardening :
- No
- Insulation Color :
- Natural
- Pitch - Mating :
- 0.200 5.08mm
- Depth :
- 9.65mm
- Applications :
- GENERAL PURPOSE
- Length - Tail :
- 4.57mm
- Contact Material :
- Phosphor Bronze
- Length :
- 25.4mm
- Housing Material :
- Nylon
- IEC Conformance :
- No
- Contact Shape :
- Circular
- Flammability Rating :
- UL94 V-2
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Plating :
- Lead, Tin
- DIN Conformance :
- No
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-2
- Empty Shell :
- No
- Termination :
- Solder
- Datasheets
- 350211-3
Commercial MATE-N-LOK Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polyamide (PA), Nylon Board to Cable/Wire 0.375 9.53mm Height
350211-3 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Commercial MATE-N-LOK Series.The device may be used for the following applications: General Purpose.It is mounted by Through Hole.It operates at an operating temperature of -55°C~105°C.
350211-3 Features
Commercial MATE-N-LOK series
350211-3 Applications
There are a lot of TE Connectivity AMP Connectors
350211-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
