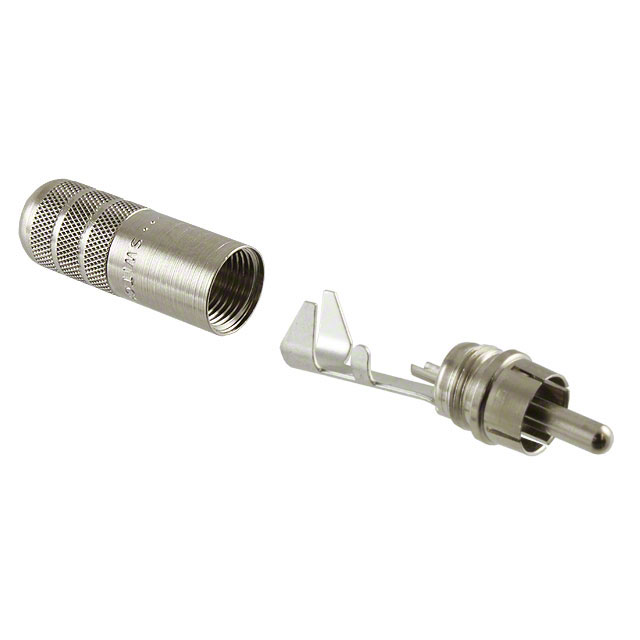

3502

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Contact Material :

COPPER ALLOY

IEC Conformance :

No

Series :

3502A

Factory Lead Time :

12 Weeks

Length :

33.34mm

Contact Material - Plating :

Nickel

Operating Temperature :

-40°C~85°C

DIN Conformance :

No

Orientation :

Straight

Lead Free :

Lead Free

Current Rating :

6A

Gender :

Male

Shielding :

Shielded

Number of Poles :

2

Diameter :

5.1562mm

Package / Case :

Metal

MIL Conformance :

No

Signal Lines :

Mono

Wire/Cable Diameter :

7.239 mm

Voltage - Rated DC :

200V

Number of Terminations :

2

Number of Ports :

1

Termination :

Solder

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Color :

Black

REACH SVHC :

Unknown

Body Color :

Silver

Industry Recognized Mating Diameter :

3.20mm ID, 9.00mm OD (RCA)

Mount :

Cable, Free Hanging

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

Not Applicable

Cable Opening :

0.200 (5.08mm)

Internal Switch(s) :

Does Not Contain Switch

Body Material :

COPPER ALLOY

Packaging :

Bulk

Connector Type :

Phono (RCA) Plug

Actual Diameter :

0.125 (3.18mm ID), 0.370 (9.40mm OD)

Voltage - Rated AC :

150V

ECCN Code :

EAR99

Includes :

2 pcs - 1 Connector, 1 Handle

Mounting Type :

Free Hanging (In-Line)

Max Voltage Rating (DC) :

140.25kV

Max Current Rating :

6A
