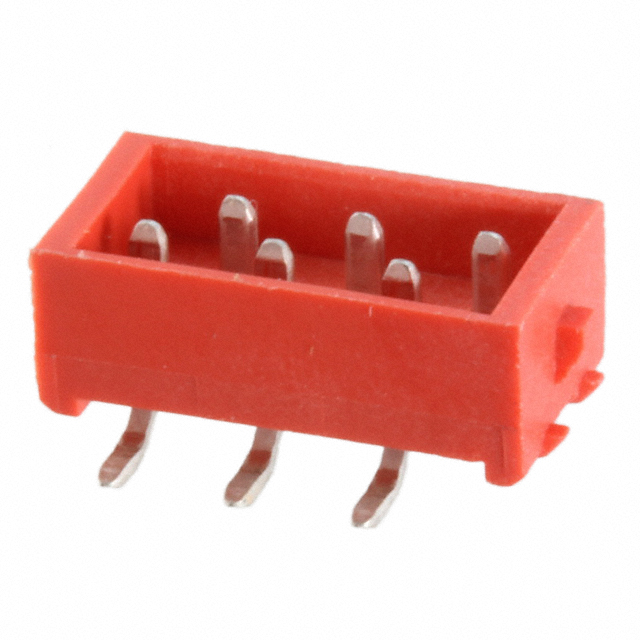

338728-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Number of Positions :

6

Length :

10.795mm

Operating Temperature :

-40°C~105°C

Factory Lead Time :

20 Weeks

Insulation Height :

0.181 4.60mm

ELV :

Compliant

Mount :

Surface Mount

Total Number of Contacts :

6

Mounting Type :

Surface Mount

Insulation Resistance :

1GOhm

Contact Type :

Male Pin

MIL Conformance :

No

Contact Material :

Brass

Number of Rows :

2

Height :

4.6mm

DIN Conformance :

No

Series :

Micro-MaTch

Mating Connector Lock :

Without

Termination :

Solder

Flammability Rating :

UL94 V-0

Applications :

GENERAL PURPOSE

PCB Thickness :

1.6mm

Current Rating :

1A

IEC Conformance :

No

Contact Finish Thickness - Mating :

118.1μin 3.00μm

RoHS Status :

RoHS Compliant

Shrouding :

Shrouded - 4 Wall

Contact Current Rating :

1.5A

Contact Shape :

RECTANGULAR

Connector Type :

Header

Style :

Board to Board or Cable

Fastening Type :

Latch Lock

Packaging :

Tape and Reel (TR)

Published :

2008

Number of Positions Loaded :

All

Filter Feature :

No

Orientation :

Vertical

Row Spacing :

1.5 mm

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Tin

Housing Color :

Red

Voltage - Rated :

230V

Pitch - Mating :

0.100 2.54mm

Housing Material :

Polyester

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Operating Supply Voltage :

100V
