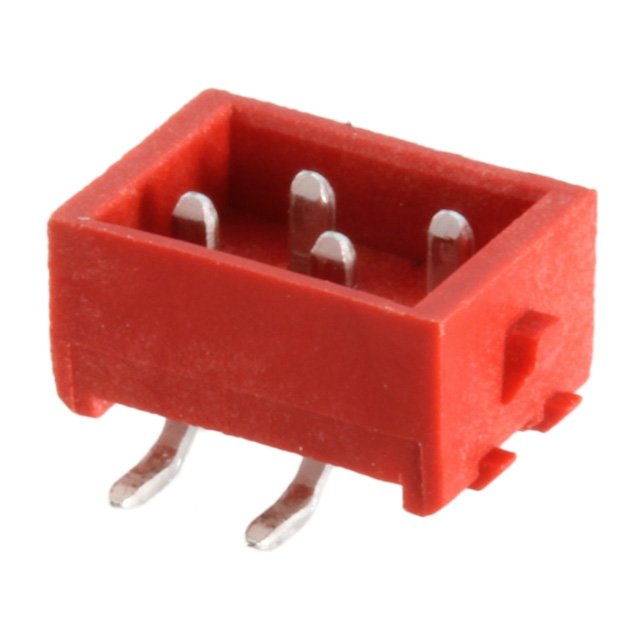

338728-4
Or copy the link below:
- Mfr.Part #
- 338728-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 2.54MM
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Total Number of Contacts :
- 4
- Contact Current Rating :
- 1.5A
- Radiation Hardening :
- No
- ELV :
- Compliant
- Insulation Resistance :
- 1GOhm
- Contact Resistance :
- 10MOhm
- Mating Connector Lock :
- Without
- Contact Type :
- Male Pin
- DIN Conformance :
- No
- Style :
- Board to Board or Cable
- Housing Color :
- Red
- Factory Lead Time :
- 17 Weeks
- Series :
- Micro-MaTch
- Operating Temperature :
- -40°C~105°C
- Packaging :
- Tape and Reel (TR)
- Depth :
- 5.15mm
- Filter Feature :
- No
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Housing Material :
- Polyester
- Length :
- 8.2804mm
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Solder
- Height :
- 4.6mm
- Orientation :
- Vertical
- Mixed Contacts :
- No
- Insulation Height :
- 0.181 4.60mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Operating Supply Voltage :
- 100V
- Connector Type :
- Header
- Mounting Type :
- Surface Mount
- Contact Shape :
- RECTANGULAR
- Current Rating :
- 1A
- Fastening Type :
- Latch Lock
- Voltage - Rated :
- 230V
- Mount :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Positions :
- 4
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Published :
- 2008
- Contact Material :
- Brass
- Row Spacing :
- 1.5 mm
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Applications :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 1.6mm
- Number of Rows :
- 2
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Datasheets
- 338728-4
Micro-MaTch Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA46), Nylon 4/6, Glass Filled 4-Position Board to Board or Cable 0.181 4.60mm Height
338728-4 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the Micro-MaTch Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.Surface Mount represents the mounting point for the part.You're going to need 100V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
338728-4 Features
Micro-MaTch series
338728-4 Applications
There are a lot of TE Connectivity AMP Connectors
338728-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
