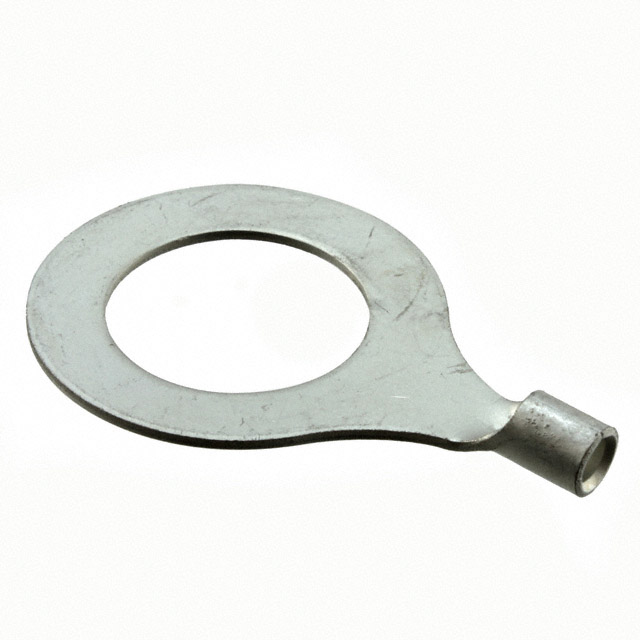

320765
Or copy the link below:
- Mfr.Part #
- 320765
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #3/4
- Stock
- 1,980
- In Stock ：
- 1,980
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Packaging :
- Bulk
- Wire Gauge (Min) :
- 12 AWG
- Width - Outer Edges :
- 1.250 31.75mm
- Wire Cross Section :
- 6.64 mm2
- Contact Plating :
- Tin
- Plating Thickness :
- 2.54μm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Wire Gauge (Max) :
- 10 AWG
- Lead Free :
- Not Applicable
- Wire Gauge :
- 10-12 AWG
- Thickness :
- 0.039 0.99mm
- Tongue Thickness :
- 1.07mm
- Pbfree Code :
- yes
- Factory Lead Time :
- 14 Weeks
- Insulation :
- Non-Insulated
- Stud/Tab Size :
- 3/4 Stud
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Gender :
- FEMALE
- Material Thickness :
- 1.07mm
- Length :
- 48.0822mm
- Length - Overall :
- 1.896 48.16mm
- Termination :
- Crimp
- Number of Holes :
- 1
- Mounting Type :
- Free Hanging (In-Line)
- Diameter - Inside :
- 3.28 mm
- Contact Material :
- Copper
- Mount :
- Free Hanging
- ELV :
- Compliant
- Feature :
- Brazed Seam, Serrated Termination
- Stud Diameter :
- 19.84 mm
- ECCN Code :
- EAR99
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Terminal Type :
- Circular
- Depth :
- 31.75mm
- HTS Code :
- 8536.90.40.00
- RoHS Status :
- RoHS Compliant
- Series :
- Solistrand
- Published :
- 2004
- Heavy Duty :
- No
- Datasheets
- 320765
320765 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
