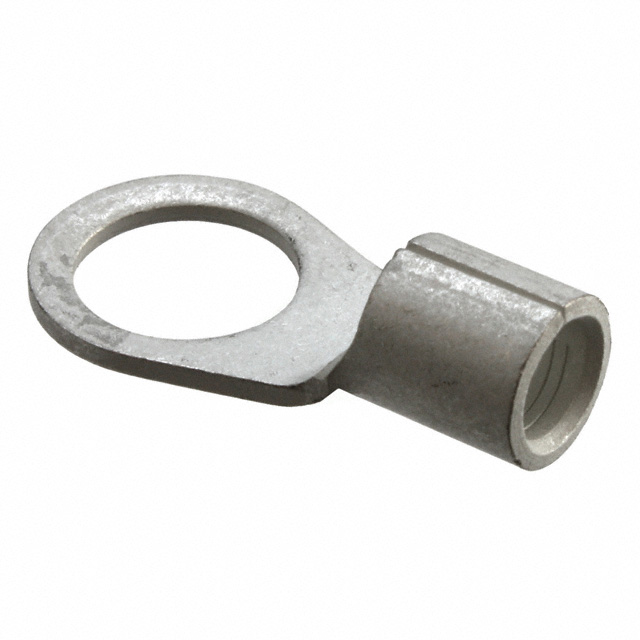

320745
Or copy the link below:
- Mfr.Part #
- 320745
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 6AWG #7/16 CRIMP
- Stock
- 1,600
- In Stock ：
- 1,600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Heavy Duty :
- No
- Contact Material :
- Copper
- Plating Thickness :
- 2.54μm
- Mount :
- Free Hanging
- RoHS Status :
- RoHS Compliant
- Thickness :
- 0.057 1.45mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- ECCN Code :
- EAR99
- Number of Holes :
- 1
- Depth :
- 15.88mm
- Packaging :
- Bulk
- Terminal and Terminal Block Type :
- RING TERMINAL
- Feature :
- Brazed Seam, Serrated Termination
- Series :
- Solistrand
- Length :
- 31.5976mm
- Wire/Cable Gauge :
- 6 AWG
- Diameter - Inside :
- 5.89 mm
- Insulation :
- Non-Insulated
- Wire Gauge :
- 6 AWG
- Termination :
- Crimp
- Contact Plating :
- Tin
- Mounting Type :
- Free Hanging (In-Line)
- Pbfree Code :
- yes
- Lead Free :
- Not Applicable
- ELV :
- Compliant
- Stud/Tab Size :
- 7/16 Stud
- HTS Code :
- 8536.90.40.00
- Length - Overall :
- 1.246 31.65mm
- Terminal Type :
- Circular
- Factory Lead Time :
- 12 Weeks
- Material Thickness :
- 1.52mm
- Stud Diameter :
- 11.51 mm
- Width - Outer Edges :
- 0.625 15.88mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2006
- Tongue Thickness :
- 1.52mm
- Datasheets
- 320745
320745 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
