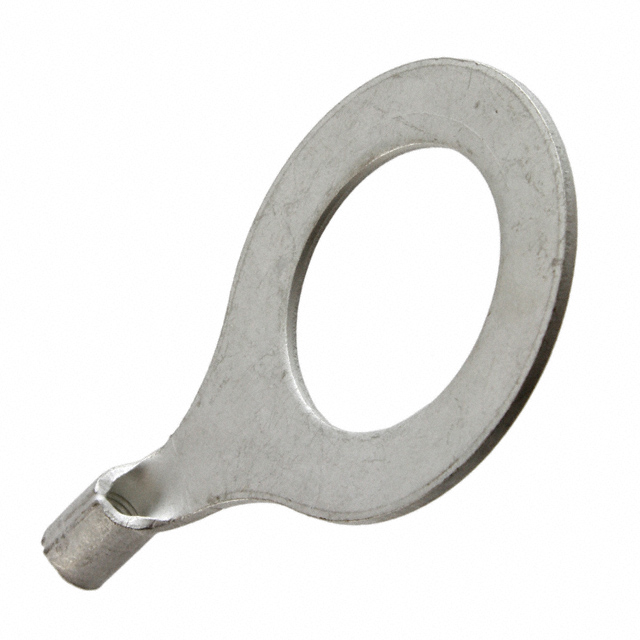

320759
Or copy the link below:
- Mfr.Part #
- 320759
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #3/4
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- ELV :
- Compliant
- Plating Thickness :
- 2.54μm
- Insulated Wire Support :
- No
- Factory Lead Time :
- 13 Weeks
- Lead Free :
- Not Applicable
- Thickness :
- 0.048 1.22mm
- ECCN Code :
- EAR99
- Contact Material :
- Copper
- Length - Overall :
- 1.896 48.16mm
- Width - Outer Edges :
- 1.250 31.75mm
- Pbfree Code :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Terminal and Terminal Block Type :
- RING TERMINAL
- Feature :
- Brazed Seam, Heavy Duty, Serrated Termination
- Termination :
- Crimp
- Insulation :
- Non-Insulated
- Length :
- 48.0822mm
- Stud/Tab Size :
- 3/4 Stud
- Heavy Duty :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8536.90.40.00
- Packaging :
- Bulk
- Plating :
- Tin
- Wire Gauge (Max) :
- 14 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 1997
- RoHS Status :
- RoHS Compliant
- Diameter - Inside :
- 2.67 mm
- Material Thickness :
- 1.27mm
- Series :
- Solistrand
- Wire Gauge :
- 14-16 AWG
- Terminal Type :
- Circular
- Tongue Thickness :
- 1.27mm
- Number of Holes :
- 1
- Stud Diameter :
- 19.84 mm
- Wire Cross Section :
- 2.62 mm2
- Wire Gauge (Min) :
- 16 AWG
- Datasheets
- 320759
