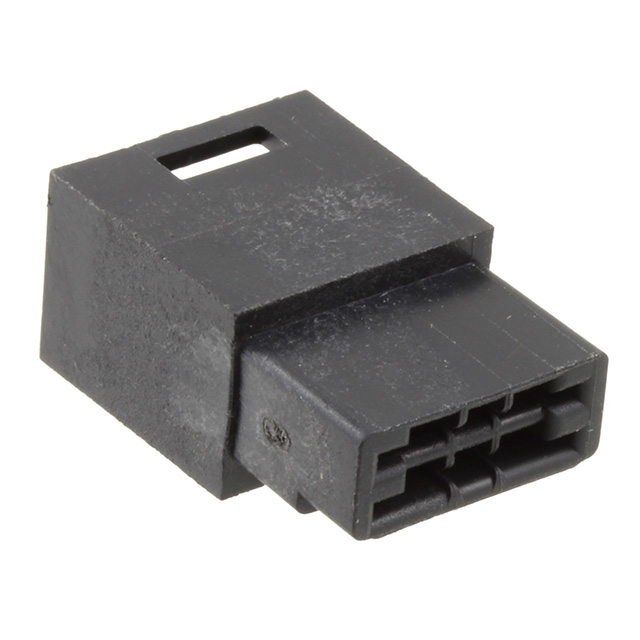

3-88189-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Total Number of Contacts :

6

Number of Positions :

6

Wire Gauge (Max) :

24 AWG

Housing Color :

Black

Sealable :

No

Number of Rows :

2

Gender :

Male

Mating Alignment :

With

Insertion Force-Max :

4.17 N

Flammability Rating :

UL94 V-0

Locking Feature :

Detent Lock

Circuit Application :

Signal

Insulation Diameter :

0.061 ~ 0.069 (1.55mm ~ 1.75mm)

Contact Style :

SQ PIN-SKT

Contact Pattern :

RECTANGULAR

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Orientation :

Straight

Insulation Resistance :

5GOhm

Operating Temperature :

-65°C~105°C

ELV :

Compliant

Body/Shell Style :

Receptacle

Published :

1997

Factory Lead Time :

9 Weeks

Current Rating :

1.5A

Packaging :

Bulk

Mount :

Cable, Free Hanging

Termination Type :

IDC

Operating Supply Voltage :

300V

Reference Standard :

UL

Row Spacing :

2.54 mm

Filter Feature :

No

Flat Flex Type :

FFC, Discrete Wire

Pbfree Code :

yes

Pitch :

0.100 2.54mm

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Type :

Flat Flex

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

22 AWG

Wire Gauge :

22-24 AWG

Connector Type :

Housing for Male Contacts

DIN Conformance :

No

Option :

GENERAL PURPOSE

MIL Conformance :

No

Length :

14.73mm

IEC Conformance :

No

ECCN Code :

EAR99

Feature :

Positions Stamped

UL Flammability Code :

94V-0

Mixed Contacts :

No

Body Breadth :

0.4 inch

Withdrawl Force-Min :

.417 N

Note :

Contacts Not Included

Depth :

23.62mm

FFC, FCB Thickness :

0.015mm

Rated Current (Signal) :

2A
