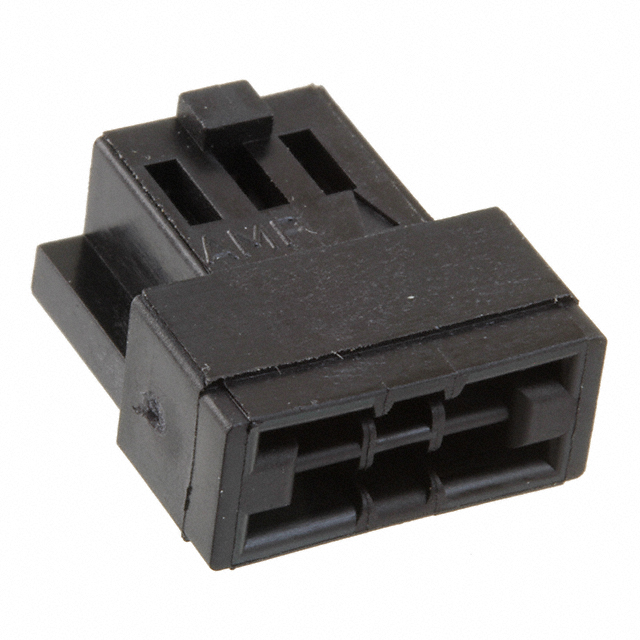

3-88179-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

ELV :

Compliant

Insulation Resistance :

5GOhm

FFC, FCB Thickness :

0.015mm

Locking Feature :

Detent Lock

Pbfree Code :

yes

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

6

Wire/Cable Type :

Flat Flex

Wire Gauge :

22-32 AWG

Operating Temperature :

-65°C~105°C

Circuit Application :

Signal

Mating Alignment :

With

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body/Shell Style :

Receptacle

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Note :

Contacts Not Included

Housing Material :

Polyamide (PA), Nylon, Glass Filled

MIL Conformance :

No

Depth :

15.24mm

UL Flammability Code :

94V-0

Pitch :

0.100 2.54mm

Polarization Key :

POLARIZED HOUSING

Insulation Diameter :

0.045 ~ 0.069 (1.14mm ~ 1.75mm)

Factory Lead Time :

23 Weeks

Termination Type :

IDC

Wire Gauge (Min) :

22 AWG

Packaging :

Bulk

Filter Feature :

No

DIN Conformance :

No

Sealable :

No

Current Rating :

1.5A

IEC Conformance :

No

Reliability :

COMMERCIAL

Number of Rows :

2

Housing Color :

Black

Reference Standard :

UL

Operating Supply Voltage :

300V

Connector Type :

Housing for Female Contacts

Published :

1997

Contact Style :

SQ PIN-SKT

Flammability Rating :

UL94 V-0

Body Breadth :

0.331 inch

Feature :

Positions Stamped

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Cable, Free Hanging

Number of Positions :

6

Wire Gauge (Max) :

32 AWG

Option :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

Orientation :

Straight

Length :

13.97mm

Rated Current (Signal) :

2A

Row Spacing :

2.54 mm

Flat Flex Type :

FFC, Discrete Wire

Gender :

FEMALE
