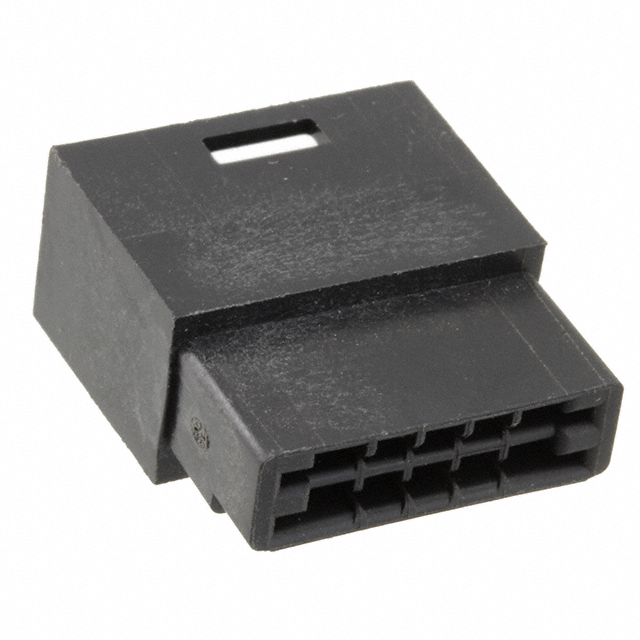

3-88189-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

ELV :

Compliant

Number of Rows :

2

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Reference Standard :

UL

Packaging :

Bulk

HTS Code :

8536.69.40.51

Depth :

23.62mm

Circuit Application :

Signal

MIL Conformance :

No

Sealable :

No

Lead Pitch :

2.54mm

Note :

Contacts Not Included

Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Mating Alignment :

With

Body Breadth :

0.4 inch

Option :

GENERAL PURPOSE

Operating Temperature :

-65°C~105°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

ECCN Code :

EAR99

Housing Color :

Black

Rated Current (Signal) :

2A

Mixed Contacts :

No

Body/Shell Style :

Receptacle

Length :

19.81mm

Material Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

24 AWG

Row Spacing :

2.54 mm

Insulation Resistance :

5GOhm

Wire Gauge (Min) :

22 AWG

Polarization Key :

POLARIZED HOUSING

Insertion Force-Max :

4.17 N

Flat Flex Type :

FFC, Discrete Wire

RoHS Status :

RoHS Compliant

Published :

1997

Number of Positions :

10

Width :

10.2mm

Mount :

Cable, Free Hanging

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Insulation Diameter :

0.061 ~ 0.069 (1.55mm ~ 1.75mm)

Gender :

Male

Locking Feature :

Detent Lock

IEC Conformance :

No

Reliability :

COMMERCIAL

Contact Style :

SQ PIN-SKT

Contact Pattern :

RECTANGULAR

Current Rating :

1.5A

Filter Feature :

No

Total Number of Contacts :

10

Wire/Cable Type :

Flat Flex

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Wire Gauge :

22-24 AWG

Factory Lead Time :

23 Weeks

Withdrawl Force-Min :

.417 N

Connector Type :

Housing for Male Contacts

Operating Supply Voltage :

300V

Pitch :

0.100 2.54mm

Termination Type :

IDC

DIN Conformance :

No

UL Flammability Code :

94V-0

Feature :

Positions Stamped

FFC, FCB Thickness :

0.015mm

Pbfree Code :

yes
