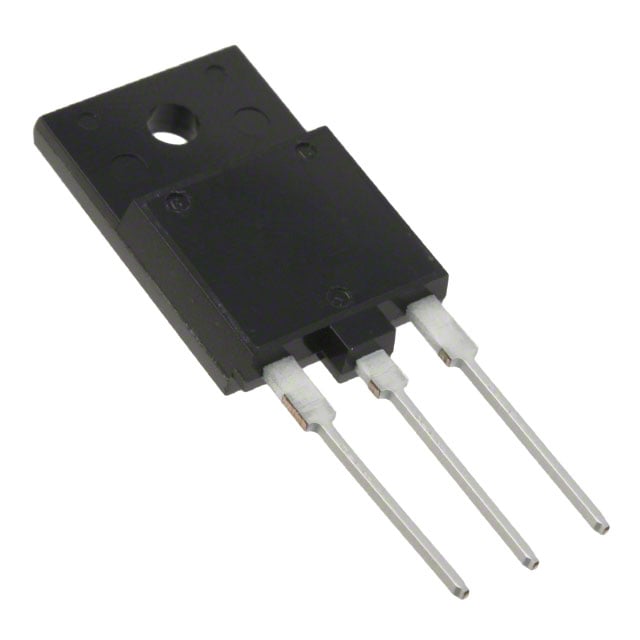

2SK3748

Manufacturer :

onsemi

Product Category :

Transistors - FETs, MOSFETs - Single

RoHS Status :

RoHS Compliant

Number of Pins :

3

Contact Plating :

Tin

Published :

2005

Number of Terminations :

3

Continuous Drain Current (ID) :

4A

Drain to Source Breakdown Voltage :

1.5kV

Vgs (Max) :

±20V

Fall Time (Typ) :

116 ns

Case Connection :

Isolated

Package / Case :

TO-3P-3 Full Pack

Qualification Status :

Not Qualified

Input Capacitance (Ciss) (Max) @ Vds :

790pF @ 30V

Number of Elements :

1

Transistor Application :

SWITCHING

Rds On (Max) @ Id, Vgs :

7 Ω @ 2A, 10V

Drain to Source Voltage (Vdss) :

1500V

Packaging :

Tray

ECCN Code :

EAR99

Mount :

Through Hole

FET Type :

N-Channel

Turn On Delay Time :

17 ns

Gate Charge (Qg) (Max) @ Vgs :

80nC @ 10V

Gate to Source Voltage (Vgs) :

20V

Power Dissipation-Max :

3W Ta 65W Tc

Operating Mode :

ENHANCEMENT MODE

Transistor Element Material :

SILICON

Turn-Off Delay Time :

360 ns

Additional Feature :

High Reliability

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pulsed Drain Current-Max (IDM) :

8A

Drive Voltage (Max Rds On,Min Rds On) :

10V

Element Configuration :

Single

Drain-source On Resistance-Max :

7Ohm

Mounting Type :

Through Hole

Drain Current-Max (Abs) (ID) :

4A

Power Dissipation :

3W

Pin Count :

3

Current - Continuous Drain (Id) @ 25°C :

4A Ta

Rise Time :

75ns

Operating Temperature :

150°C TJ
