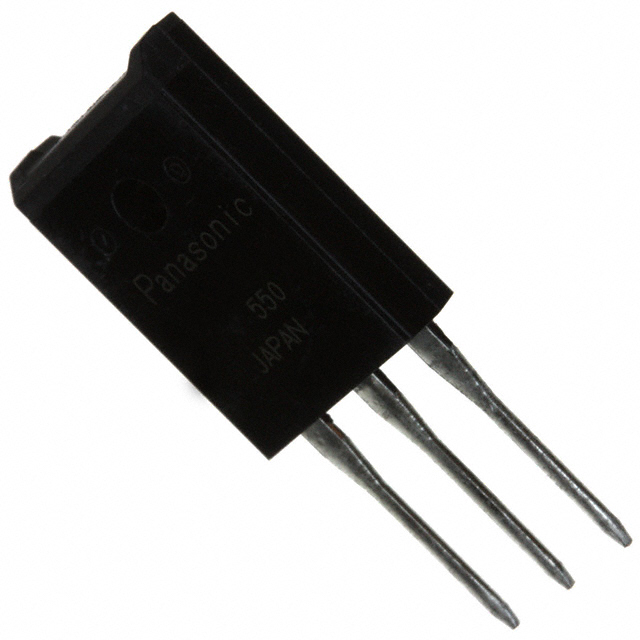

2SC4960

Manufacturer :

Panasonic

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Type :

NPN

Transition Frequency :

4MHz

Reach Compliance Code :

Unknown

Mounting Type :

Through Hole

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

150°C TJ

ECCN Code :

EAR99

Current - Collector (Ic) (Max) :

1A

Published :

2003

RoHS Status :

RoHS Compliant

Package / Case :

TOP-3F

DC Current Gain (hFE) (Min) @ Ic, Vce :

3 @ 500mA 5V

Power - Max :

3W

Case Connection :

Isolated

JESD-30 Code :

R-PSFM-T3

Current - Collector Cutoff (Max) :

50μA ICBO

Packaging :

Bulk

Terminal Finish :

TIN SILVER BISMUTH COPPER

Polarity/Channel Type :

NPN

Frequency - Transition :

4MHz

Qualification Status :

Not Qualified

HTS Code :

8541.29.00.95

Number of Elements :

1

Number of Terminations :

3

Power Dissipation-Max (Abs) :

40W

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Position :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Surface Mount :

No

Transistor Element Material :

SILICON

Pbfree Code :

yes

Voltage - Collector Emitter Breakdown (Max) :

800V

Vce Saturation (Max) @ Ib, Ic :

1.5V @ 40mA, 200mA

Configuration :

Single

Transistor Application :

SWITCHING
