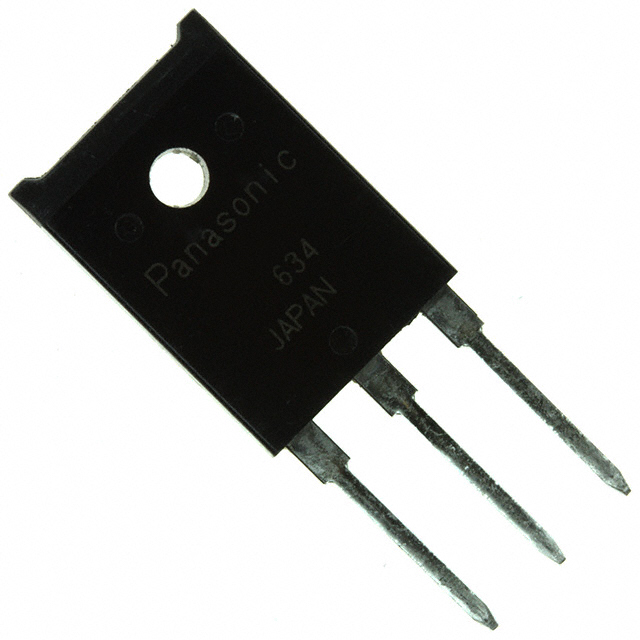

2SC4420
Or copy the link below:
- Mfr.Part #
- 2SC4420
- Manufacturer
- Panasonic
- Package / Case
- TOP-3F
- Datasheet
- Download
- Description
- TRANS NPN 800V 3A TOP-3F
- Stock
- 16,673
- In Stock ：
- 16,673
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Number of Terminations :
- 3
- Max Breakdown Voltage :
- 800V
- Reach Compliance Code :
- Unknown
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Terminal Finish :
- TIN SILVER BISMUTH COPPER
- Mounting Type :
- Through Hole
- Lead Free :
- Lead Free
- Transition Frequency :
- 10MHz
- RoHS Status :
- RoHS Compliant
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 6 @ 800mA 5V
- Number of Elements :
- 1
- Polarity/Channel Type :
- NPN
- Collector Emitter Voltage (VCEO) :
- 1.5V
- Transistor Element Material :
- SILICON
- Max Power Dissipation :
- 3W
- JESD-30 Code :
- R-PSFM-T3
- Max Collector Current :
- 3A
- Transistor Application :
- SWITCHING
- Qualification Status :
- Not Qualified
- Terminal Position :
- Single
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Collector Emitter Breakdown Voltage :
- 800V
- Current Rating :
- 3A
- Mount :
- Through Hole
- HTS Code :
- 8541.29.00.95
- Frequency - Transition :
- 10MHz
- Case Connection :
- Isolated
- Current - Collector Cutoff (Max) :
- 50μA ICBO
- Package / Case :
- TOP-3F
- Pbfree Code :
- yes
- Voltage - Rated DC :
- 800V
- Vce Saturation (Max) @ Ib, Ic :
- 1.5V @ 160mA, 800mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- 150°C TJ
- Published :
- 2003
- Configuration :
- Single
- Packaging :
- Bulk
- Transistor Type :
- NPN
- Datasheets
- 2SC4420
NPN 150°C TJ 50μA ICBO 1 Elements 3 Terminations SILICON NPN TOP-3F Bulk Through Hole
2SC4420 Overview
This device has a DC current gain of 6 @ 800mA 5V, which is the ratio between the base current and the collector current.A VCE saturation (Max) of 1.5V @ 160mA, 800mA means Ic has reached its maximum value(saturated).This device has a current rating of 3A which corresponds to the maximum current it can carry for an indefinite period without deteriorating too much.As you can see, the part has a transition frequency of 10MHz.A breakdown input voltage of 800V volts can be used.A maximum collector current of 3A volts is possible.
2SC4420 Features
the DC current gain for this device is 6 @ 800mA 5V
the vce saturation(Max) is 1.5V @ 160mA, 800mA
the current rating of this device is 3A
a transition frequency of 10MHz
2SC4420 Applications
There are a lot of Panasonic Electronic Components
2SC4420 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
