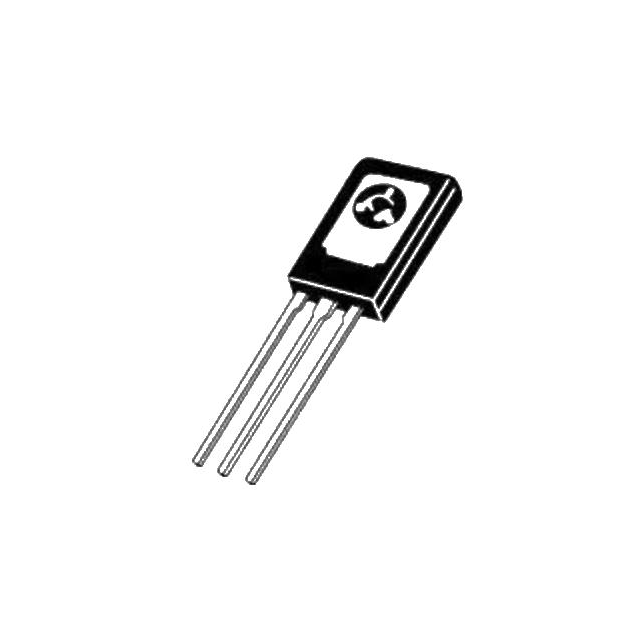

2SC3595D
Or copy the link below:
- Mfr.Part #
- 2SC3595D
- Manufacturer
- Sanyo
- Package / Case
- Datasheet
- Download
- Description
- NPN EPITAXIAL PLANAR SILICON
- Stock
- 1,400
- In Stock ：
- 1,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sanyo
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Transistor Application :
- SWITCHING
- DC Current Gain-Min (hFE) :
- 60
- RoHS :
- Compliant
- Reach Compliance Code :
- Unknown
- JESD-30 Code :
- R-PSFM-T3
- Surface Mount :
- No
- Configuration :
- Single
- Manufacturer :
- SANYO Electric Co Ltd
- Power Dissipation-Max (Abs) :
- 1.2 W
- Terminal Position :
- Single
- Package Shape :
- RECTANGULAR
- Collector Current-Max (IC) :
- 0.5 A
- Number of Elements :
- 1
- Terminal Form :
- THROUGH-HOLE
- Polarity/Channel Type :
- NPN
- Collector-Emitter Voltage-Max :
- 20 V
- Subcategory :
- Other Transistors
- Collector Emitter Voltage (VCEO) :
- 20 V
- Number of Terminals :
- 3
- Pin Count :
- 3
- Qualification Status :
- Not Qualified
- Series :
- *
- Product Status :
- Active
- JEDEC-95 Code :
- TO-126
- Transistor Element Material :
- SILICON
- Package :
- Bulk
- Datasheets
- 2SC3595D
1 Elements SILICON NPN
2SC3595D Overview
20 V is the maximum collector-emitter voltage setting.
2SC3595D Features
2SC3595D Applications
There are a lot of Sanyo
2SC3595D applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
