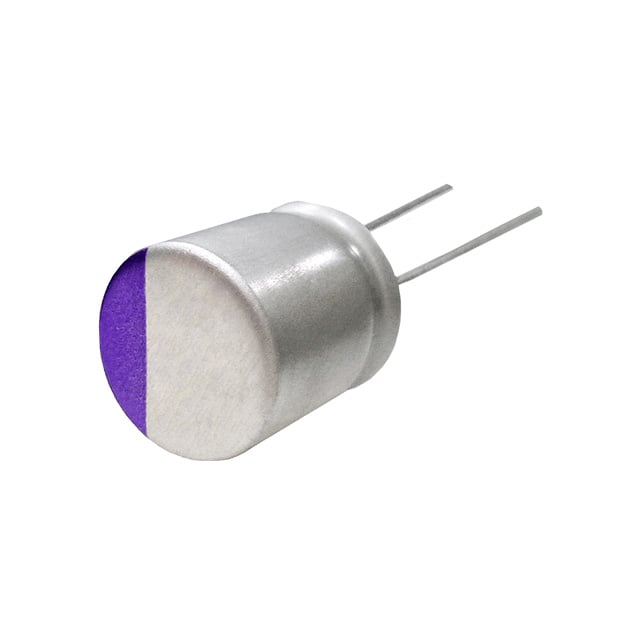

2R5SEPC820M

Manufacturer :

Panasonic

Product Category :

Aluminum - Polymer Capacitors

Lifetime @ Temp :

5000 Hrs @ 105°C

Series :

OS-CON™, SEPC

Ripple Current @ Low Frequency :

305mA @ 120Hz

Dissipation Factor :

10 %

Type :

Polymer

Ripple Current @ High Frequency :

6.1A @ 100kHz

Moisture Sensitivity Level (MSL) :

Not Applicable

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

10 Weeks

Voltage :

2.5V

Published :

2012

Capacitance :

820µF

Diameter :

8mm

Terminal Shape :

Wire

Operating Temperature :

-55°C~105°C

ECCN Code :

EAR99

Tolerance :

±20%

Leakage Current :

500μA

Height :

13mm

REACH SVHC :

No SVHC

Applications :

GENERAL PURPOSE

Lead Pitch :

3.5mm

Height Seated (Max) :

0.512 13.00mm

Lead Diameter :

600 µm

ESR (Equivalent Series Resistance) :

7mOhm

Polarity :

Polar

Number of Terminations :

2

Lead Free :

Lead Free

Size / Dimension :

0.315Dia 8.00mm

Lead Spacing :

0.138 3.50mm

Termination :

Radial

Number of Pins :

13

Packaging :

Bulk

Mount :

Through Hole

Tan Delta :

0.1

Mounting Type :

Through Hole

Voltage - Rated DC :

2.5V

Ripple Current :

6.1A

Life (Hours) :

5000 hours

Package / Case :

Radial, Can
