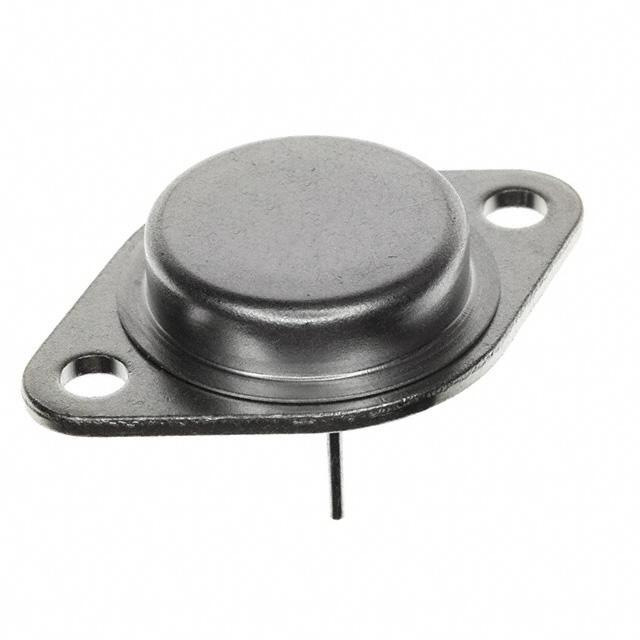

2N6274
Or copy the link below:
- Mfr.Part #
- 2N6274
- Manufacturer
- Microchip Technology
- Package / Case
- Datasheet
- Download
- Description
- NPN TRANSISTOR
- Stock
- 47,860
- In Stock ：
- 47,860
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Number of Terminations :
- 2
- Terminal Finish :
- TIN LEAD
- ECCN Code :
- EAR99
- JESD-30 Code :
- O-MBFM-P2
- Pbfree Code :
- No
- Mount :
- Through Hole
- Polarity/Channel Type :
- NPN
- Contact Plating :
- Lead, Tin
- Published :
- 1999
- Qualification Status :
- Not Qualified
- JESD-609 Code :
- e0
- Configuration :
- Single
- DC Current Gain-Min (hFE) :
- 10
- Collector Emitter Voltage (VCEO) :
- 100V
- RoHS Status :
- Non-RoHS Compliant
- Terminal Position :
- BOTTOM
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 1 month ago)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Number of Elements :
- 1
- Case Connection :
- COLLECTOR
- Factory Lead Time :
- 12 Weeks
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Max Operating Temperature :
- 200°C
- Pin Count :
- 2
- Terminal Form :
- PIN/PEG
- Packaging :
- Bulk
- Max Collector Current :
- 50A
- Max Power Dissipation :
- 250W
- JEDEC-95 Code :
- TO-204AE
- Min Operating Temperature :
- -65°C
- Collector Base Voltage (VCBO) :
- 120V
- HTS Code :
- 8541.29.00.95
- Datasheets
- 2N6274
1 Elements 2 Terminations NPN Bulk
2N6274 Overview
A maximum collector current of 50A volts can be achieved.
2N6274 Features
2N6274 Applications
There are a lot of Microsemi Corporation
2N6274 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
