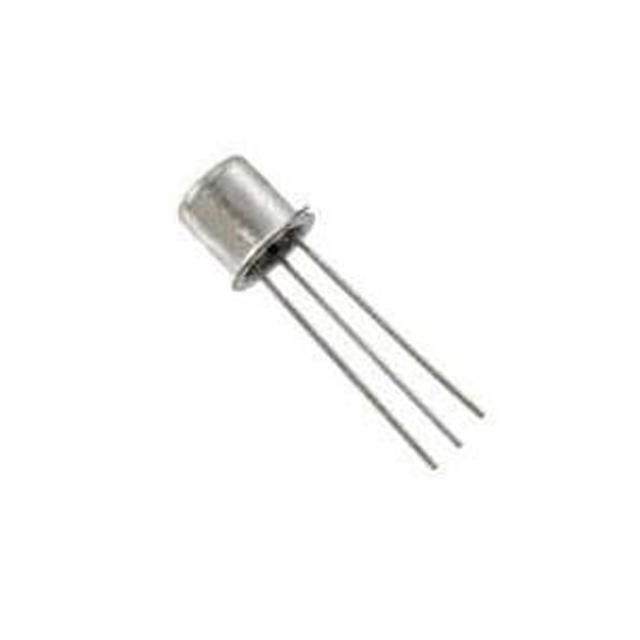

2N5116
Or copy the link below:
- Mfr.Part #
- 2N5116
- Manufacturer
- Solid State Inc.
- Package / Case
- TO-206AA, TO-18-3 Metal Can
- Datasheet
- Download
- Description
- P-CHANNEL MOSFET TO-18
- Stock
- 34,911
- In Stock ：
- 34,911
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Solid State Inc.
- Product Category :
- Transistors - JFETs
- FET Type :
- P-Channel
- Gate to Source Voltage (Vgs) :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8541.21.00.95
- Package / Case :
- TO-206AA, TO-18-3 Metal Can
- Operating Mode :
- Depletion Mode
- Resistance - RDS(On) :
- 150Ohm
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Drain-source On Resistance-Max :
- 150Ohm
- Operating Temperature :
- -65°C~200°C TJ
- Current - Drain (Idss) @ Vds (Vgs=0) :
- 5mA @ 15V
- Terminal Position :
- BOTTOM
- Voltage - Cutoff (VGS off) @ Id :
- 1V @ 1nA
- Factory Lead Time :
- 8 Weeks
- Mounting Type :
- Through Hole
- FET Technology :
- JUNCTION
- Feedback Cap-Max (Crss) :
- 7 pF
- Terminal Form :
- Wire
- Power - Max :
- 500mW
- Max Power Dissipation :
- 500mW
- Transistor Element Material :
- SILICON
- Input Capacitance (Ciss) (Max) @ Vds :
- 25pF @ 15V
- Transistor Application :
- SWITCHING
- Published :
- 2001
- Number of Elements :
- 1
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e0
- Packaging :
- Box
- Radiation Hardening :
- No
- Number of Pins :
- 3
- Mount :
- Through Hole
- Number of Terminations :
- 3
- Pbfree Code :
- No
- Element Configuration :
- Single
- Datasheets
- 2N5116
