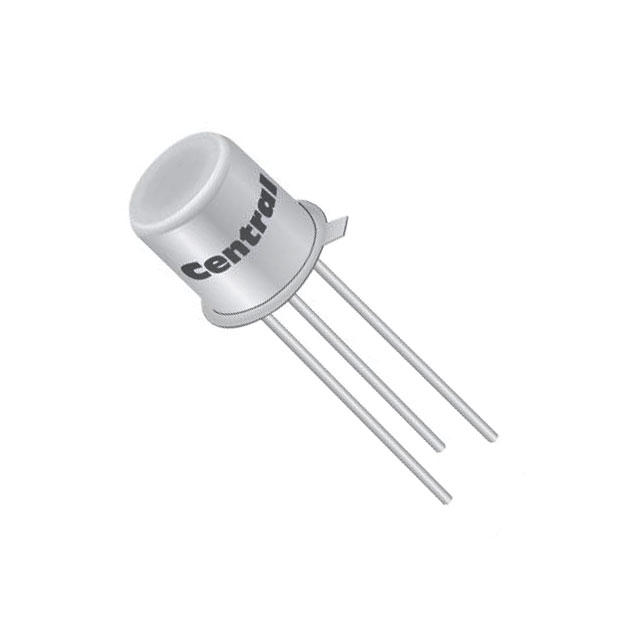

2N5116

Manufacturer :

Central Semiconductor

Product Category :

Transistors - JFETs

Mounting Type :

Through Hole

Drain-source On Resistance-Max :

150Ohm

Terminal Finish :

Tin/Lead (Sn/Pb)

Terminal Position :

BOTTOM

Current - Drain (Idss) @ Vds (Vgs=0) :

5mA @ 15V

Max Power Dissipation :

500mW

Power - Max :

500mW

Voltage - Cutoff (VGS off) @ Id :

1V @ 1nA

Radiation Hardening :

No

Gate to Source Voltage (Vgs) :

30V

Pbfree Code :

No

Transistor Element Material :

SILICON

Factory Lead Time :

8 Weeks

Mount :

Through Hole

Transistor Application :

SWITCHING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

1

HTS Code :

8541.21.00.95

Number of Terminations :

3

Packaging :

Box

FET Technology :

JUNCTION

Feedback Cap-Max (Crss) :

7 pF

Input Capacitance (Ciss) (Max) @ Vds :

25pF @ 15V

FET Type :

P-Channel

Published :

2001

Terminal Form :

Wire

Package / Case :

TO-206AA, TO-18-3 Metal Can

Element Configuration :

Single

Resistance - RDS(On) :

150Ohm

JESD-609 Code :

e0

Number of Pins :

3

RoHS Status :

ROHS3 Compliant

Operating Mode :

Depletion Mode

Operating Temperature :

-65°C~200°C TJ
