2N4923
Or copy the link below:
- Mfr.Part #
- 2N4923
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-126
- Datasheet
- Download
- Description

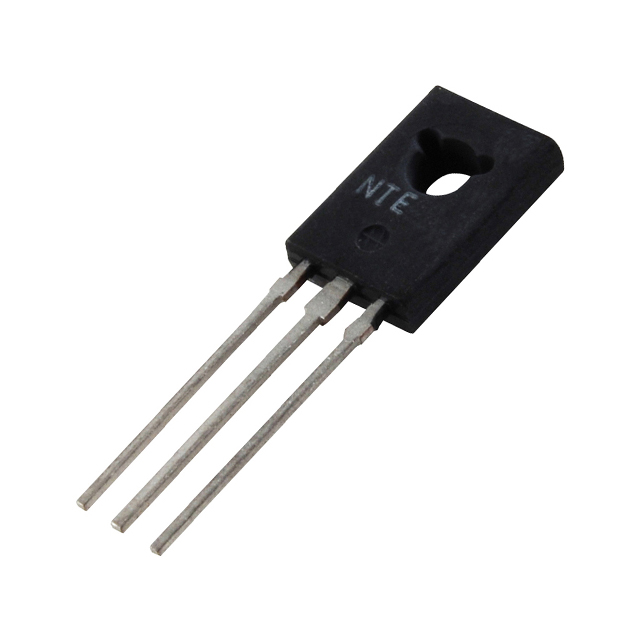

- TRANS NPN 80V 1A TO126
- Stock
- 104
- In Stock ：
- 104
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Configuration :
- Single
- Emitter Base Voltage (VEBO) :
- 5V
- Collector Base Voltage (VCBO) :
- 80V
- Max Collector Current :
- 1A
- Frequency - Transition :
- 3MHz
- Factory Lead Time :
- 10 Weeks
- JESD-609 Code :
- e0
- Transistor Application :
- SWITCHING
- Mount :
- Through Hole
- Qualification Status :
- Not Qualified
- Polarity :
- NPN
- RoHS Status :
- RoHS Compliant
- Continuous Collector Current :
- 450mA
- Number of Terminations :
- 3
- Power Dissipation-Max :
- 30W
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- DC Current Gain-Min (hFE) :
- 10
- Published :
- 2016
- Collector Emitter Saturation Voltage :
- 600mV
- Number of Elements :
- 1
- Min Operating Temperature :
- -65°C
- Terminal Position :
- Single
- hFE Min :
- 40
- Max Operating Temperature :
- 150°C
- HTS Code :
- 8541.29.00.95
- Gain Bandwidth Product :
- 3MHz
- Transition Frequency :
- 3MHz
- Package / Case :
- TO-126
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- JESD-30 Code :
- R-PSFM-T3
- Collector Emitter Breakdown Voltage :
- 80V
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Pbfree Code :
- No
- ECCN Code :
- EAR99
- Collector Emitter Voltage (VCEO) :
- 80V
- Datasheets
- 2N4923
2N4923 Documents
1 Elements 3 Terminations TO-126
2N4923 Overview
The collector emitter saturation voltage is 600mV, giving you a wide variety of design options.Single BJT transistor is essential to maintain the continuous collector voltage at 450mA to achieve high efficiency.An emitter's base voltage can be kept at 5V to gain high efficiency.As a result, the part has a transition frequency of 3MHz.In extreme cases, the collector current can be as low as 1A volts.
2N4923 Features
a collector emitter saturation voltage of 600mV
the emitter base voltage is kept at 5V
a transition frequency of 3MHz
2N4923 Applications
There are a lot of Central Semiconductor
2N4923 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
