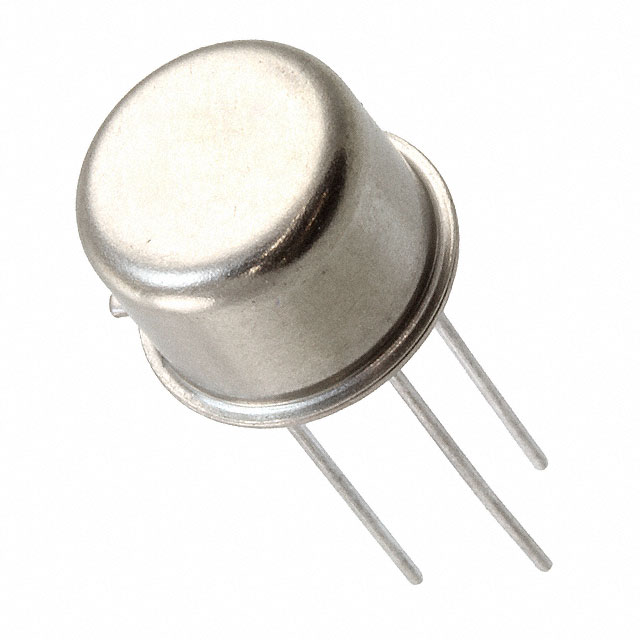

2N4150S

Manufacturer :

Microchip Technology

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Application :

SWITCHING

Lifecycle Status :

IN PRODUCTION (Last Updated: 3 weeks ago)

Collector Base Voltage (VCBO) :

100V

Terminal Position :

BOTTOM

Mount :

Through Hole

Polarity/Channel Type :

NPN

Number of Pins :

3

JESD-609 Code :

e0

HTS Code :

8541.29.00.95

Radiation Hardening :

No

Published :

2007

DC Current Gain-Min (hFE) :

10

Factory Lead Time :

12 Weeks

Max Collector Current :

10A

Pin Count :

2

Terminal Finish :

TIN LEAD

Turn Off Time-Max (toff) :

2000ns

Max Power Dissipation :

1W

Configuration :

Single

Number of Elements :

1

Terminal Form :

Wire

ECCN Code :

EAR99

Collector Emitter Voltage (VCEO) :

70V

RoHS Status :

Non-RoHS Compliant

Max Operating Temperature :

200°C

Turn On Time-Max (ton) :

550ns

Number of Terminations :

3

Min Operating Temperature :

-65°C

Pbfree Code :

No
