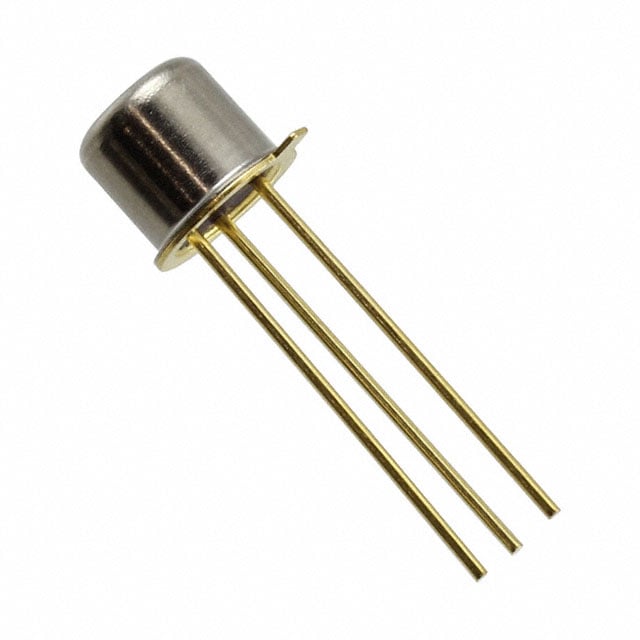

2N2608

Manufacturer :

Microchip Technology

Product Category :

Transistors - JFETs

FET Type :

P-Channel

Transistor Element Material :

SILICON

ECCN Code :

EAR99

Mounting Type :

Through Hole

Terminal Finish :

Matte Tin (Sn)

Additional Feature :

LOW NOISE

Qualification Status :

Not Qualified

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Factory Lead Time :

11 Weeks

Terminal Form :

Wire

Number of Terminations :

3

Terminal Position :

BOTTOM

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Operating Mode :

Depletion Mode

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power - Max :

300mW

Pbfree Code :

No

Mount :

Through Hole

Voltage - Cutoff (VGS off) @ Id :

1V @ 1μA

Element Configuration :

Single

Current - Drain (Idss) @ Vds (Vgs=0) :

900μA @ 5V

Voltage - Breakdown (V(BR)GSS) :

30V

Number of Pins :

3

Operating Temperature (Max) :

200°C

FET Technology :

JUNCTION

Number of Elements :

1

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e3

Transistor Application :

AMPLIFIER

Package / Case :

TO-206AA, TO-18-3 Metal Can
