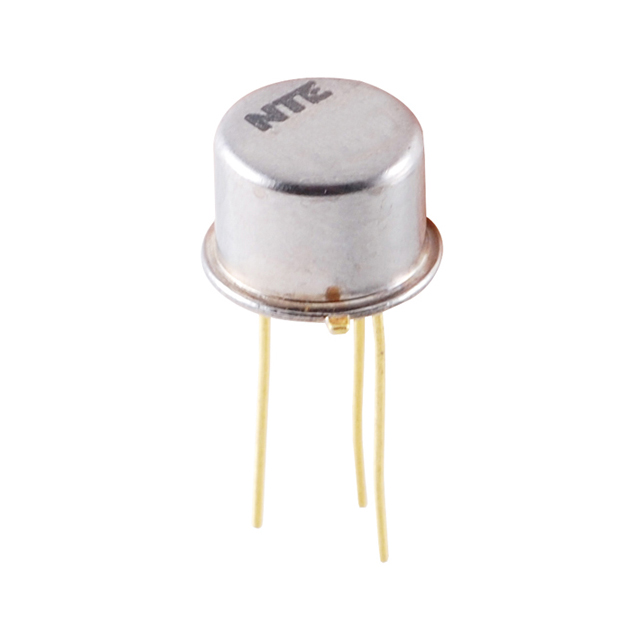

2N2405
Or copy the link below:
- Mfr.Part #
- 2N2405
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-39
- Datasheet
- Download
- Description
- TRANS NPN 90V 1A TO39
- Stock
- 130
- In Stock ：
- 130
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Pbfree Code :
- No
- Polarity :
- NPN
- Transistor Element Material :
- SILICON
- Gain Bandwidth Product :
- 50MHz
- Terminal Position :
- BOTTOM
- JESD-609 Code :
- e0
- Terminal Form :
- Wire
- Transistor Application :
- SWITCHING
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Emitter Base Voltage (VEBO) :
- 7V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Collector Emitter Saturation Voltage :
- 500mV
- DC Current Gain-Min (hFE) :
- 60
- Frequency - Transition :
- 120MHz
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Factory Lead Time :
- 8 Weeks
- Max Collector Current :
- 1A
- Pin Count :
- 3
- JESD-30 Code :
- O-MBCY-W3
- Qualification Status :
- Not Qualified
- Number of Elements :
- 1
- Collector Emitter Voltage (VCEO) :
- 500mV
- Element Configuration :
- Single
- Operating Temperature (Max) :
- 200°C
- RoHS Status :
- RoHS Compliant
- hFE Min :
- 60
- Power Dissipation-Max :
- 1W
- Mount :
- Through Hole
- Number of Terminations :
- 3
- Collector Emitter Breakdown Voltage :
- 90V
- Transition Frequency :
- 50MHz
- Package / Case :
- TO-39
- Collector Base Voltage (VCBO) :
- 120V
- Published :
- 2006
- ECCN Code :
- EAR99
- Datasheets
- 2N2405
1 Elements 3 Terminations SILICON TO-39
2N2405 Overview
A collector emitter saturation voltage of 500mV allows maximum design flexibility.The base voltage of the emitter can be kept at 7V to achieve high efficiency.In this part, there is a transition frequency of 50MHz.The maximum collector current is 1A volts.
2N2405 Features
a collector emitter saturation voltage of 500mV
the emitter base voltage is kept at 7V
a transition frequency of 50MHz
2N2405 Applications
There are a lot of Central Semiconductor
2N2405 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
