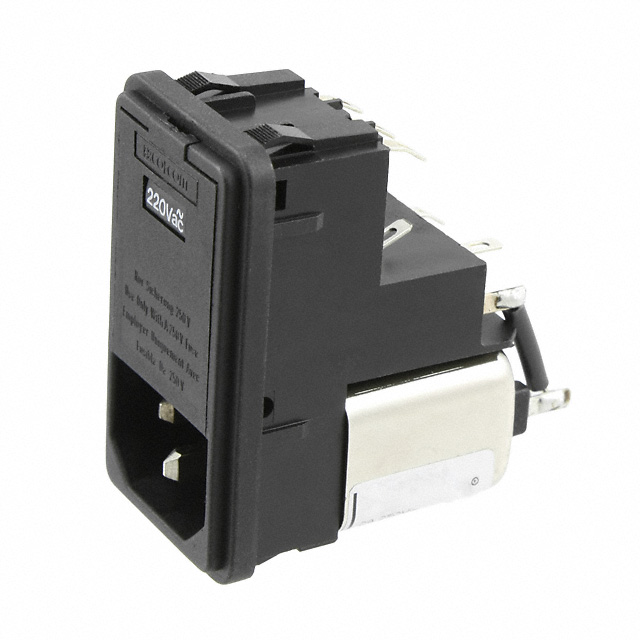

2EDL4CM
Or copy the link below:
- Mfr.Part #
- 2EDL4CM
- Manufacturer
- TE Connectivity Corcom Filters
- Package / Case
- Datasheet
- Download
- Description
- PWR ENT MOD RCPT IEC320-C14 PNL
- Stock
- 17,687
- In Stock ：
- 17,687
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Corcom Filters
- Product Category :
- Power Entry Modules (PEM)
- Current - IEC :
- 2A
- Base Product Number :
- 2EDL
- Packaging :
- Bulk
- MIL Conformance :
- No
- Mains Connector Rating :
- 2A, 250VAC
- Fuse Holder, Drawer :
- Fuse Holder
- Contact Gender :
- Male
- Mounting :
- Snap-In
- Fuse :
- yes
- IEC Conformance :
- No
- Panel Thickness :
- 0.031 ~ 0.126 (0.79mm ~ 3.20mm)
- Mounting Type :
- Panel
- Approvals :
- CSA, SEMKO, SEV, UL, VDE
- Reach Compliance Code :
- Compliant
- DIN Conformance :
- No
- Contact Material :
- NOT SPECIFIED
- Material Flammability Rating :
- --
- ECCN Code :
- EAR99
- Current - UL :
- 2A
- Body Orientation :
- Straight
- Switch Features :
- --
- Series :
- L, Corcom
- Accomodates a Fuse :
- Yes (Fuse Not Included)
- Voltage - IEC :
- 120/250VAC
- Product Status :
- Obsolete
- Factory Lead Time :
- 28 Weeks
- Connector Style :
- IEC 320-C14
- Gender :
- PLUG
- Package :
- Bulk
- Termination :
- Quick Connect - 0.110 (2.8mm)
- Approval Agency :
- CSA, SEMKO, SEV, UL, VDE
- Connector Type :
- MAINS POWER CONNECTOR
- Coupling Type :
- Snap
- Features :
- Voltage Selector
- Total Number of Contacts :
- 3
- Filter Type :
- Filtered (EMI, RFI) - Commercial
- HTS Code :
- 8536.69.40.30
- Panel Cutout Dimensions :
- Rectangular - 28.50mm x 55.91mm
- Product Length :
- 32.51 mm
- Termination Method :
- Faston
- Voltage - UL :
- 250VAC
- Number of Positions :
- 3
- Ingress Protection :
- --
- Option :
- GENERAL PURPOSE
- Datasheets
- 2EDL4CM
2EDL4CM datasheet pdf and Power Entry Connectors - Inlets, Outlets, Modules product details from TE Connectivity stock available at Xinshop
