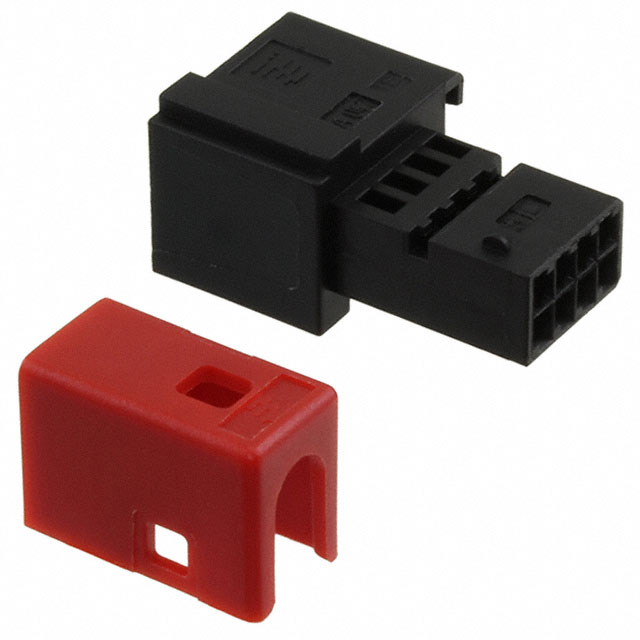

284869-1
Or copy the link below:
- Mfr.Part #
- 284869-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 8POS 2.54MM
- Stock
- 408
- In Stock ：
- 408
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Mating Tab Width :
- 635μm
- Connector Type :
- PLUG
- Contact Termination :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- Mount :
- Cable, Free Hanging
- Min Operating Temperature :
- -25°C
- Housing Material :
- Polyamide
- Max Voltage Rating (AC) :
- 600V
- Series :
- Micro Quadlok
- DIN Conformance :
- No
- Hybrid Connector :
- No
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Lead Free :
- Not Applicable
- Published :
- 2005
- Color :
- Black
- Mounting Type :
- Free Hanging (In-Line)
- Row Spacing :
- 3.0988 mm
- Depth :
- 28.5mm
- Body Material :
- PBT
- Serviceable :
- yes
- Orientation :
- Straight
- IEC Conformance :
- No
- Number of Positions :
- 8
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 15 Weeks
- Max Operating Temperature :
- 85°C
- Pitch :
- 0.100 2.54mm
- Note :
- Contacts Not Included
- Wire Gauge (Min) :
- 18 AWG
- Circuit Application :
- Signal
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Height :
- 28.4988mm
- Wire Gauge (Max) :
- 24 AWG
- Width :
- 13.7mm
- MIL Conformance :
- No
- Gender :
- Male
- Pbfree Code :
- yes
- Length :
- 16.6878mm
- Contact Type :
- Female Socket
- Datasheets
- 284869-1
2 Rows Plug Bulk Black 8 Positions Free Hanging (In-Line) Female Socket Crimp Micro Quadlok Polyamide
284869-1 Overview
This product is packaged in a Plug box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Micro Quadlok Series.By Cable, Free Hanging, the part is mounted.
284869-1 Features
Micro Quadlok series
284869-1 Applications
There are a lot of TE Connectivity AMP Connectors
284869-1 Rectangular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
