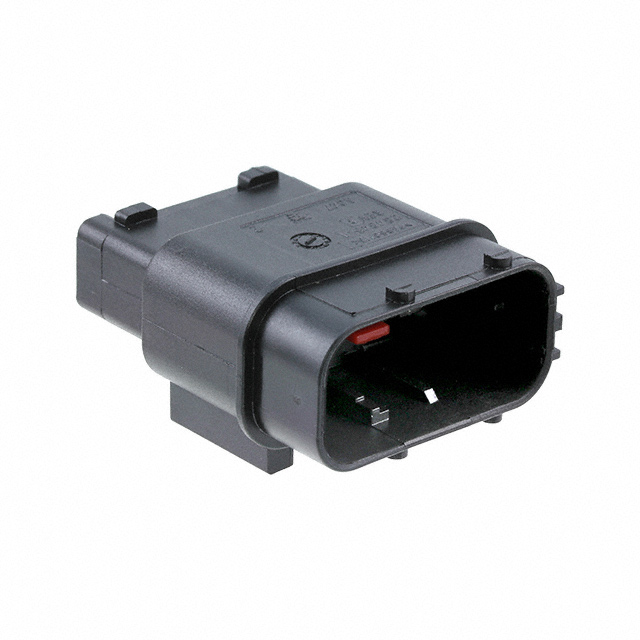

284844-1
Or copy the link below:
- Mfr.Part #
- 284844-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 12POS 5.20MM
- Stock
- 1,080
- In Stock ：
- 1,080
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Polarized :
- No
- ELV :
- Compliant
- Note :
- Contacts Not Included
- ECCN Code :
- EAR99
- Gender :
- Male
- Mount :
- Cable, Free Hanging
- Number of Positions :
- 12
- RoHS Status :
- RoHS Compliant
- Termination :
- Crimp
- Series :
- MCP
- Mounting Type :
- Free Hanging (In-Line)
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Orientation :
- Straight
- Factory Lead Time :
- 15 Weeks
- Current Rating :
- 20A
- Mating Tab Width :
- 1.6002mm
- Ratings :
- IP67
- Number of Rows :
- 2
- Contact Type :
- Tab
- Circuit Application :
- Signal
- Max Operating Temperature :
- 257°C
- Hybrid Connector :
- yes
- Published :
- 2005
- Min Operating Temperature :
- -13°C
- Pitch :
- 0.205 5.20mm
- Housing Material :
- Polyamide
- Row Spacing :
- 0.236 (6.00mm)
- Width :
- 21.5mm
- Depth :
- 49.4mm
- Insulation Material :
- PBT
- Packaging :
- Bulk
- HTS Code :
- 8536.69.40.30
- Height :
- 49.403mm
- Connector Type :
- PLUG
- Length :
- 41.402mm
- Voltage - Rated :
- 24V
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 284844-1
2 Rows Plug Bulk Black 12 Positions Free Hanging (In-Line) Tab MCP Polyamide
284844-1 Overview
Packaging is in the form of Plug.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the MCP Series.There is a mounting hole at Cable, Free Hanging.
284844-1 Features
MCP series
284844-1 Applications
There are a lot of TE Connectivity AMP Connectors
284844-1 Rectangular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
